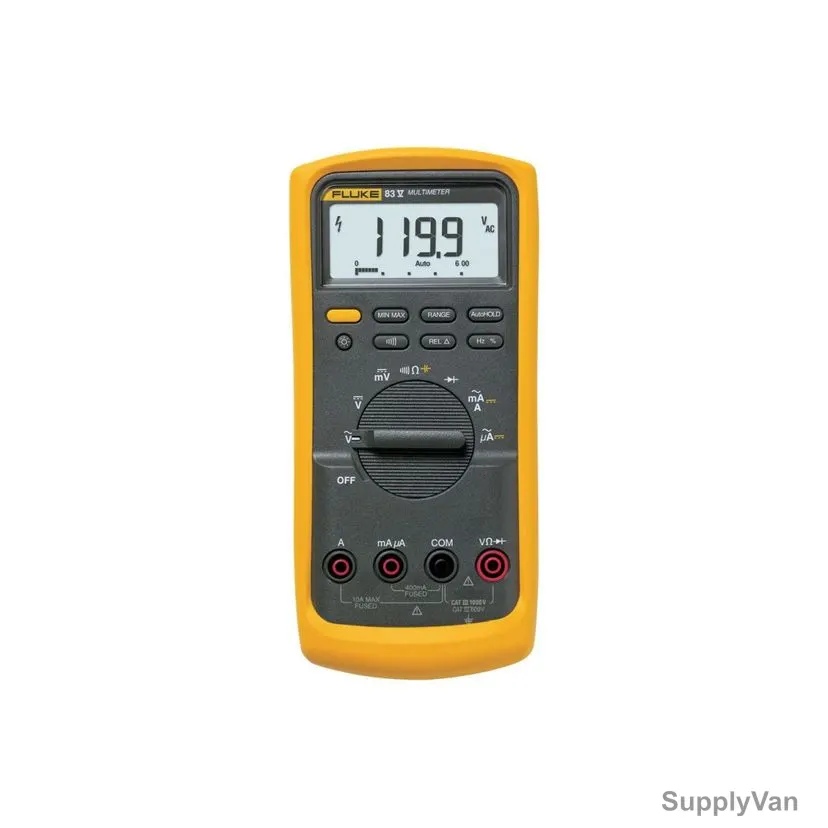

Fluke Average Responding Industrial Multimeter, 83-V-EUR, 10A, 1000V
(No reviews yet)
Write a Review
- Brand:
- Fluke
- SKU:
- 548982955875
- Minimum Purchase:
- 1 unit
- Item Name:
- Industrial Multimeter
- Model:
- 83-V-EUR
- Manufacturer:
- Fluke
- Color:
- Yellow and Black
- Battery Size:
- AA
- Safety Rating:
- EN 61010-1 to 1000V CAT III, 600V CAT IV
- Battery Type:
- Alkaline
- Storage Temperature:
- -40 to +60 Deg.C
- Battery Life:
- 400 hrs typical, without backlight
- Humidity:
- 0 to 90% (0 - 35 Deg.C), 0 - 70% (35 - 55Deg.C)
- Brand Origin (not manufacture):
- United States
- Certification:
- 7048,5042
- Product Size L x B x H (Cms):
- 20.1L x 9.8B x 5.2H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
Industrial electricians around the world trust the Fluke 83V Industrial Multimeter from the control room to the plant floor. With its accuracy and troubleshooting capabilities, the Fluke 83V Industrial Multimeter works when you need it, even in loud, high energy, and high altitude locations. When productivity is on the line and you need to solve problems fast, the Fluke 83V delivers the accuracy and advanced troubleshooting capabilities you need. Fluke builds the most trusted tools in the world and that means more than just the Fluke 83V. If you work with HVAC equipment, need a small meter for small spaces or work in the electrical installer's and repairman's world, check out the full family of Fluke digital multimeters.
Specifications
Voltage DC Maximum voltage: 1000V Voltage DC Accuracy: +/-(0.1% + 1) Voltage DC Maximum resolution: 100 µV Voltage AC Maximum voltage: 1000V Voltage AC Accuracy: +/-(0.5% + 2) Voltage AC Maximum resolution: 0.1 mV Current DC Maximum amps: 10 A (20 A for 30 seconds maximum) Current DC Amps accuracy: +/-(0.4% + 2) Current DC Maximum resolution: 0.01 mA Current AC Maximum amps: 10 A (20 A for 30 seconds maximum) Current AC Amps accuracy: +/-(1.2% + 2) Current AC Maximum resolution: 0.1 µA Resistance Maximum resistance: 50 MOhm Resistance Accuracy: +/-(0.4% + 1) Resistance Maximum resolution: 0.1 Ohm Capacitance Maximum capacitance: 9,999 µF Capacitance Accuracy: +/-(1% + 2) Capacitance Maximum resolution: 0.01 nF Frequency Maximum frequency: 200 kHz Frequency Accuracy: +/-(0.005% + 1) Frequency Maximum resolution: 0.01 Hz Duty cycle Maximum duty cycle: 99.9% Duty cycle Accuracy: +/-(0.2% per khz + 0.1%) Duty cycle Maximum resolution: 0.1% Conductance Maximum conductance: 60.00 nS Conductance Accuracy: +/-(1.0% + 10) Conductance Maximum resolution: 0.01 nS Diode Range: 3 V Diode Resolution: 1 mV Diode Accuracy: +/-(2% + 1) Duty cycle range Accuracy: within +/-(0.2% per kHz + 0.1%) Display Digital: 6000 counts updates 4/sec Analog: 32 segments, updates 40/sec Frequency: 19,999 counts, updates 3/sec at > 10 Hz Shock: 1 Meter drop per IEC 61010-1:2001 Vibration: Per MIL-PRF-28800 for a Class 2 instrument
Items Included:

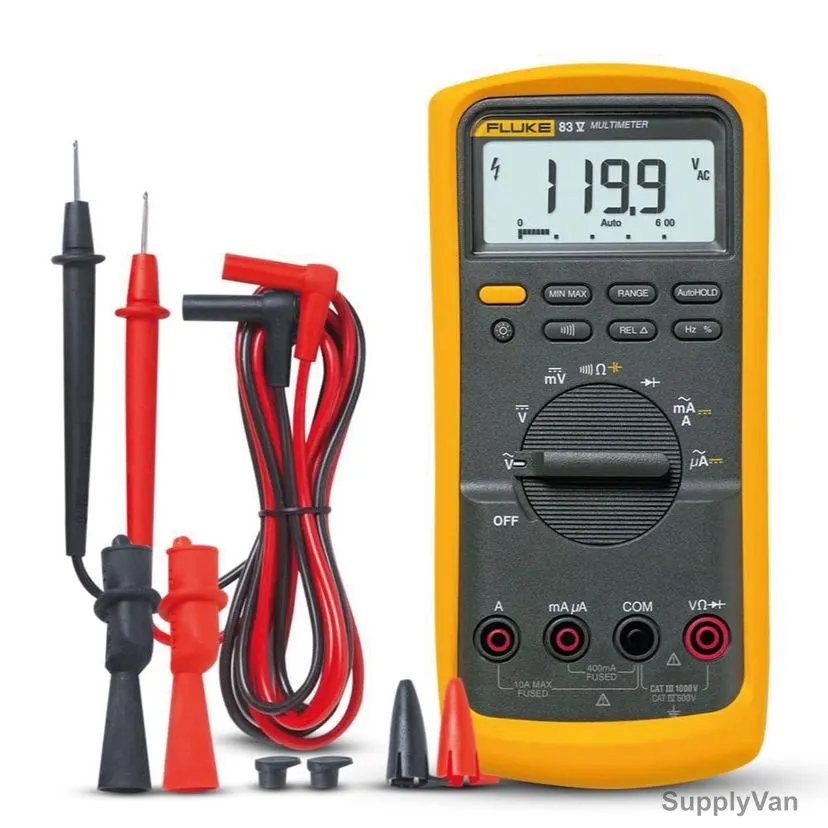

Fluke 83-V Digital Multimeter, TL75 Test Leads, AC175 Alligator Clips, Holster, 9V Battery (Installed)
View AllClose
Specifications
- Optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks
- Large digit display with bright, two-level backlight makes the 83V significantly easier to read than older models
- Min/Max-Average recording with Min/Max Alert to capture variations automatically
- Relative mode to remove test lead interference from low ohms measurements
- Auto and manual ranging for maximum flexibility
- Touch Hold to capture stable readings avoiding noisy signals
- Large display digits and two-level bright white backlight for increased visibility
- Analog bargraph for fast changing or unstable signals
- Input Alert provides audible warning against wrong use of input jacks
- Improved selectable sleep mode for long battery life
- Access door for fast battery changes without breaking the calibration seal
- Classic design with new removable holster with built in test lead and probe storage
Items Included:
Fluke 83-V Digital Multimeter, TL75 Test Leads, AC175 Alligator Clips, Holster, 9V Battery (Installed)
Item Name: |
Industrial Multimeter |
Model: |
83-V-EUR |
Manufacturer: |
Fluke |
Color: |
Yellow and Black |
Battery Size: |
AA |
Safety Rating: |
EN 61010-1 to 1000V CAT III, 600V CAT IV |
Battery Type: |
Alkaline |
Storage Temperature: |
-40 to +60 Deg.C |
Battery Life: |
400 hrs typical, without backlight |
Humidity: |
0 to 90% (0 - 35 Deg.C), 0 - 70% (35 - 55Deg.C) |
Brand Origin (not manufacture): |
United States |
Certification: |
7048,5042 |
Product Size L x B x H (Cms): |
20.1L x 9.8B x 5.2H |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
