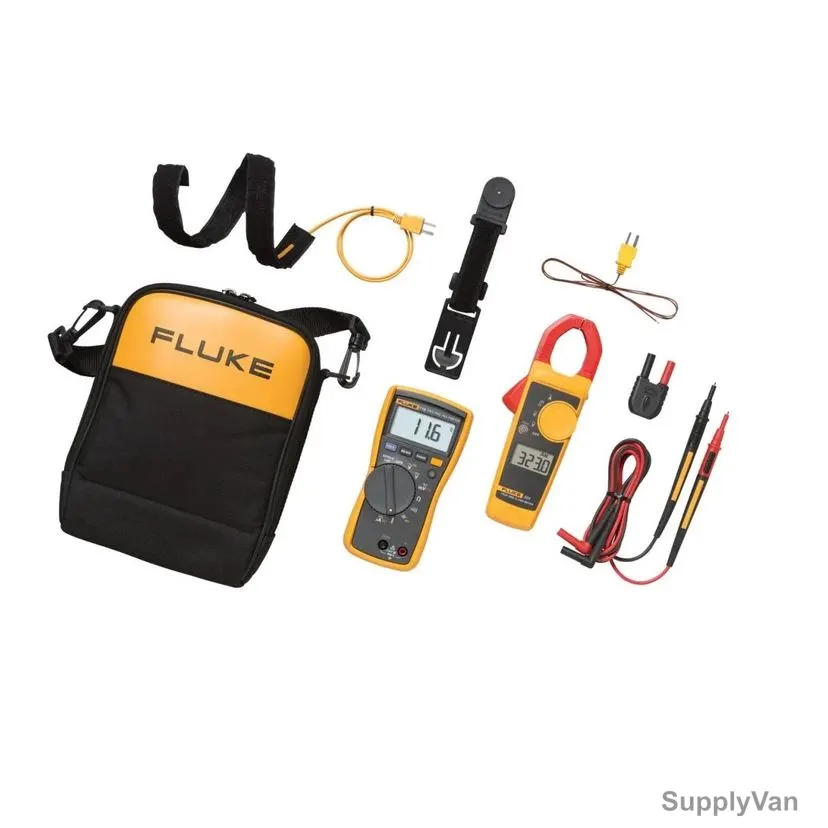

Having the right tool for the job is essential. Having all the right tools when you need them is even better. The Fluke 116/323 HVAC Combo Kit gives you the best in a versatile, rugged multimeter and a fast-acting, general purpose clamp meter.
Together, the Fluke 116 HVAC Multimeter and 323 True RMS Clamp Meter give electricians the right tools for the job.
Fluke 116 Digital Multimeter. Designed by Electricians. Engineered by Fluke
The Fluke 116 comes with the Fluke 80BK-A integrated DMM temperature probe; no need to carry a separate thermometer. The microamp function allows flame sensor measurement down to 0.1 microamps. The AutoV/LoZ function prevents false readings caused by ghost voltage. The Fluke 116 also has a large white LED backlight for work in poorly lit areas. It measures resistance, continuity, frequency, and capacitance and provides Min/Max/Average readings with elapsed time to record signal fluctuations. Fluke 116 multimeters are independently tested for safe use in CAT III 600 V environments.
Key Features
Built-in thermometer for HVAC applications
Microamps to test flame sensors
Low input impedance: helps prevent false readings due to ghost voltage
Large white LED backlight to work in poorly lit areas
Resistance, continuity, frequency and capacitance
Min/Max/Average with elapsed time to record signal fluctuations
Compact ergonomic design for one-handed operation
Compatible with optional magnetic hanger (ToolPak)
CAT III 600 V safety rated
Specifications
Maximum voltage between any terminal and earth ground: 600V
Surge protection: 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
Display: 6000 counts, updates 4 per second
Bar graph: 33 segments, updates 32 per second
Operating temperature: -10 to +50 Deg.C
Storage temperature: -40 to +60Deg.C
Battery type: 9V Alkaline, NEDA 1604A/ IEC 6LR61
Battery life: 400 hours typical, without backlight
Accuracy Specifications
DC Millivolts
Range/Resolution: 600.0 mV / 0.1 mV
Accuracy: +/-([% of reading] + [counts]): 0.5% + 2
DC Volts
Range/Resolution: 6.000V/60.00V/600.00V / 0.001V/0.01V/0.1V
Accuracy: +/-([% of reading] + [counts]): 0.5% + 2
Auto Volts
Range/Resolution: 600.0V / 0.1V
Accuracy: 2.0% + 3 (DC, 45 Hz to 500 Hz), 4.0% + 3 (500 Hz to 1 kHz)
AC millivolts True RMS
Range/Resolution: 600.0mV / 0.1mV
Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz), 2.0% + 3 (500 Hz to 1 kHz)
AC volts True RMS
Range/Resolution: 6.000V/60.00V/600.0V / 0.001V/0.01V/0.1V
Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz), 2.0% + 3 (500 Hz to 1 kHz)
Continuity
Range/Resolution: 600 Ohm / 1 Ohm
Accuracy: Beeper on < 20 Ohm, off > 250 Ohm; detects opens or shorts of 500 μs or longer.
Ohms
Range: 600.0 Ohm/6.000 kOhm/60.00 kOhm/600.0 kOhm/6.000 MOhm
Resolution: 0.1 Ohm/0.001 kOhm/0.01 kOhm/0.1 kOhm/0.001 MOhm
Accuracy: 0.9% + 1
Range/Resolution: 40.00 MOhm / 0.01 MOhm
Accuracy: 1.5% + 2
Diode Test
Range/Resolution: 2.000V / 0.001V
Accuracy: 0.9% + 2
Capacitance
Range: 1000 nF/10.00 μF/100.0 μF/9999 μF/100 μF to 1000 μF
Resolution: 1 nF/0.01 μF/0.1 μF/1 μF
Accuracy: 1.9% + 2
Range/Resolution: >1000 μF
Accuracy: 5% + 20%
LoZ Capacitance
Range: 1 nF to 500 μF
Accuracy: 10% + 2 typical
Temperature (Type-K thermocouple)
Range/Resolution: -40 to 400 Deg.C / 0.1 Deg.C
Accuracy: 1% + 10²
Range/Resolution: -40 to 752Deg.F / 0.2 Deg.F
Accuracy: 1% + 18²
AC μamps True RMS (45 Hz to 500 Hz)
Range/Resolution: 600.0 μA / 0.1 μA
Accuracy: 1.0% + 2
DC μamps
Range/Resolution: 600.0 μA / 0.1 μA
Accuracy: 1.0% + 2
Hz (V or A input)
Range: 99.99/999.99/9.999/50.00Hz
Resolution: 0.01/0.1/0.001/0.01Hz
Accuracy: 0.1% + 2
Mechanical and General Specifications
Size: 167 x 84 x 46mm
Weight: 550gm
Warranty: 3 Years
Fluke 323 True-rms Clamp Meter. Rugged. Reliable. Precise.
True RMS measurements and optimized ergonomics make the Fluke 323 True RMS Clamp Meter the best general purpose clamp meter for commercial and residential electricians. The Fluke 323 model is ideally suited for current measurements up to 400 A in tight cable compartments.
Key Features
400 A AC current measurement
600 VAC and DC voltage measurement
True RMS AC voltage and current for accurate measurements on non-linear signals
Resistance measurement up to 40 kΩ with continuity detection
Slim, ergonomic design
CAT IV 300 V/CAT III 600 V safety rating
Specifications
AC Current
Range: 400.0A
Accuracy: 2% +/-5 digits (45 Hz to 65 Hz), 2.5% +/-5 digits (65 Hz to 400 Hz)
AC Voltage
Range: 600.0V
Accuracy: 1.5% +/-5 digits
DC Voltage
Range: 600.0V
Accuracy: 1.0% +/-5 digits
Resistance
Range/Resolution: 400.0 Ohm/ 4000 Ohm
Accuracy: 1.0% +/-5 digits
Continuity: <=70 Ohm
AC response: True-rms
Data hold: Yes
Size: 207 x 75 x 34mm (H x W x D)
Max wire diameter: 30 mm (600 MCM)
Weight: 265gm
Category rating: CAT III 600V/CAT IV 300V
Warranty: 2 YearsItems Included:
1x Multimeter, 1x Clamp Meter
