Fluke Electricians Multimeter Combo Kit, 117-323, 5 Pcs/Kit

Fluke117 Digital Multimeter. Designed by Electricians. Engineered by Fluke.

VoltAlert technology for non-contact voltage detection

AutoVolt automatic ac/dc voltage selection

Low input impedance: Helps prevent false readings due to ghost voltage

Large white LED backlight to work in poorly lit areas

True-rms for accurate measurements on non-linear loads

Measures 10 A (20 A overload for 30-seconds)

Resistance, continuity, frequency and capacitance

Min/Max/Average to record signal fluctuations

Compact ergonomic design for one-handed operation

CAT III 600V safety rated

Specifications

Maximum voltage between any terminal and earth ground: 600V

Surge protection: 6 kV peak per IEC 61010-1 600VCAT III, Pollution Degree 2

Fuse for A input: 11 A, 1000V FAST Fuse (Fluke PN 803293)

Display Digital: 6,000 counts, updates 4 per second

Bar Graph: 33 segments, updates 32 per second

Operating Temperature: -10 to +50 Deg.C

Storage Temperature: -40 to +60 Deg.C

Battery Type: 9V Alkaline, NEDA 1604A/ IEC 6LR61

Battery Life: 400 hours typical, without backlight

Accuracy Specifications

DC millivolts Range/Resolution: 600.0 mV / 0.1 mV

DC millivolts Accuracy: +/-([% of reading] + [counts]): 0.5% + 2

DC volts Range/Resolution: 6.000V / 0.001 V, 60.00V / 0.01 V, 600.00V / 0.1 V

DC volts Accuracy: +/-([% of reading] + [counts]): 0.5% + 2

Auto volts Range/Resolution: 600.0V / 0.1 V

Auto volts Accuracy: 2.0% + 3 (DC, 45 Hz to 500 Hz), 4.0% + 3 (500 Hz to 1 kHz)

AC millivolts True RMS Range/Resolution: 600.0 mV / 0.1 mV

AC millivolts True RMS Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz), 2.0% + 3 (500 Hz to 1 kHz)

AC volts True RMS Range/Resolution: 6.000V / 0.001 V, 60.00V / 0.01 V, 600.0V / 0.1 V

AC volts True RMS Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz), 2.0% + 3 (500 Hz to 1 kHz)

Continuity Range/Resolution: 600 Ohm / 1 Ohm

Continuity Accuracy: Beeper on < 20 Ohm, off > 250 Ohm; detects opens or shorts of 500 ?s or longer

Ohms Range/Resolution: 600.0 Ohm / 0.1 Ohm, 6.000 kOhm / 0.001 kOhm, 60.00 kOhm / 0.01 kOhm, 600.0 kOhm / 0.1 kOhm, 6.000 MOhm / 0.001 MOhm, 40.00 MOhm / 0.01 MOhm

Ohms Accuracy: 0.9% + 1, 5% + 2

Diode test Range/Resolution: 2.00V / 0.001 V

Diode test Accuracy: 0.9% + 2

Capacitance Range/Resolution: 1000 nF / 1 nF, 10.00 ?F / 0.01 ?F, 100.0 ?F / 0.1 ?F, 9999 ?F / 1 ?F, 100 ?F to 1000 ?F

Capacitance Accuracy: 1.9% + 2

Lo-Z capacitance Range: 1 nF to 500 ?F

Lo-Z capacitance Accuracy: 10% + 2 typical

AC amps True RMS (45 Hz to 500 Hz) Range/Resolution: 6.000 A / 0.1 A, 10.00 A / 0.01 A

AC amps True RMS (45 Hz to 500 Hz) Accuracy: 1.5% + 3, 20 A continuous overload for 30 seconds max

DC amps Range/Resolution: 6.000 A / 0.1 A10.00 A / 0.01 A

DC amps Accuracy: 1.0% + 3, 20 A continuous overload for 30 seconds max

Hz (V or A input) Range/Resolution: 99.99 Hz / 0.01 Hz, 999.99 Hz / 0.1 Hz, 9.999 Hz / 0.001 Hz, 50.00 Hz / 0.01 Hz

Hz (V or A input) Accuracy: 0.1% + 2

Mechanical and General Specifications

Dimensions: 167 x 84 x 46mm (6.57 x 3.31 x 1.82 inches)

Weight: 550g

Warranty: 3 Years

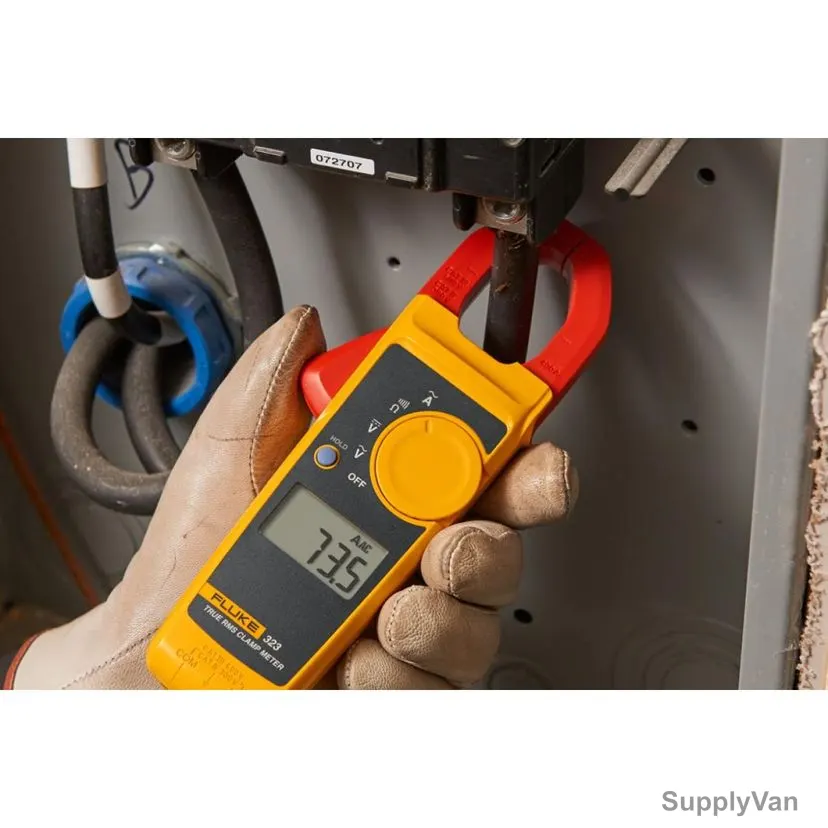

The Fluke 323 clamp meter is a good basic troubleshooting tool for commercial and residential electricians. It includes true rms measurements, optimized ergonomics and a large display for efficient troubleshooting. The small clamp is designed to make measurements in tight cable compartments easier on you and it’s ideally suited for current measurements up to 400 A or voltage measurements up to 600V.
Specification

AC current Range: 400.0 A

AC current Accuracy: 2% +/-5 digits (45 Hz to 65 Hz), 2.5% +/-5 digits (65 Hz to 400 Hz)

AC voltage Range: 600.0V

AC voltage Accuracy: 1.5% +/-5 digits

DC voltage Range: 600.0V

DC voltage Accuracy: 1.0% +/-5 digits

Resistance Range/Resolution: 400.0 Ohm/ 4000 Ohm

Resistance Accuracy: 1.0% +/-5 digits

Continuity: <= 70 Ohm

AC response: True RMS

Data hold: Yes

Dimensions: 207 x 75 x 34mm

Max. Wire Diameter: 30mm

Weight: 265g

Category rating: CAT III 600V, CAT IV 300V

Warranty: 2 Years

• The right combination of tools an electrician needs on the job
• Multimeter and clamp meter, test leads, TPAK and carrying case
• 117: wide array of measurement options all packed into one tool
• 323: take measurements easily in tight cable compartments
• The Fluke 117 Electrician’s Multimeter and 323 True-rms Clamp Meter give electricians easy to use, time-saving tools for your work

Items Included:
Fluke 117 digital multimeter, Fluke 323 clamp meter, Tl175 test leads, TPAK ToolPak magnetic meter hanger, Soft carrying case
