Fluke Industrial Electrician Combo Kit, 87-5-E2, 12 Pcs/Kit

(No reviews yet) Write a Review
Brand:
Fluke
SKU:
388673217426
Minimum Purchase:
1 unit
Item Name:
Electrician Combo Kit
Model:
87-5-E2
Manufacturer:
Fluke
Temperature Range:
-200 to 1090 Deg.C
Operating Altitude:
2000 Mtrs
DC Current Accuracy:
+/-(0.2% +2)
AC Current Accuracy:
+/-(1.0% +2)
Resistance Accuracy:
+/-(0.2% +1)
Display Count:
6000 Count
Dimensions:
201 x 98 x 52mm
Battery Type:
Alkaline
Measuring Voltage Range - AC:
1000V
Measuring Voltage Range - DC:
1000V
Storage Temperature:
-40 to 60 Deg.C
Operating Temperature:
-20 to 55 Deg.C
Measuring Current Range - DC:
+/-(0.2% +2)
Measuring Current Range - AC:
10-20A
Measuring Capacitance Range:
9999 µF
DC Voltage Accuracy:
+/-(0.05% +1)
AC Voltage Accuracy:
+/-(0.7% +2)
Frequency Accuracy:
+/-(0.005% +1)
Capacitance Accuracy:
+/-(1% +2)
Measuring Resistance Range:
50 Mohm
Measuring Frequency Range:
200kHz
Battery Life:
400 Hours typical, without backlight
Brand Origin (not manufacture):
United States
Delivery Time:
2-7 Days
Unit:
Kit
See Full Product Specs
  • Fluke Industrial Electrician Combo Kit, 87-5-E2, 12 Pcs/Kit
  • Fluke Industrial Electrician Combo Kit, 87-5-E2, 12 Pcs/Kit
  • Fluke Industrial Electrician Combo Kit, 87-5-E2, 12 Pcs/Kit
  • Fluke Industrial Electrician Combo Kit, 87-5-E2, 12 Pcs/Kit
AED2,504.00

Description

Fluke 87V Offers
Identifies complex signal problems fast

Provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment. On top of that, this industrial multimeter effectively performs in loud, high energy, and high altitude locations. Features a low pass filter which supports precise frequency measurements on VFDs and acquires intermittents as quickly as 250 µS.

Use this multimeter to measure AC currents up to 10 A directly. Also, features a built-in thermometer that enables you to take temperature readings without having to carry a separate instrument and more. Plus, comes with a bright, two-level backlit display which allows you to see the results better in dim light.

Electrical safety

All inputs are protected to the 2nd edition of ANSI/ISA S82.01 and EN61010-1 CAT IV 600 V and CAT III, 1000 V. They can withstand impulses in excess of 8.000 V and reduce risks related to surges and spikes.

Correctly measure pulse-width modulated motor drive signals

Until now, there hasn't been a multimeter able to accurately measure adjustable speed drives. Although, this industrial multimeter is designed specifically to handle these complex signals. Think of the potential productivity you'll gain by taking the guesswork out of drive system troubleshooting. Measurements are correct each and every time.

Features
  • Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
  • Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
  • Optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks
  • Large digit display with bright, two-level backlight makes the 87V significantly easier to read than older models
  • True-rms ac voltage and current for accurate measurements on non linear signals
  • Selectable filter for accurate voltage and frequency measurements on motor drives
  • Auto and manual ranging for maximum flexibility
  • Touch Hold to capture stable readings avoiding noisy signals
  • Large display digits and two-level bright white backlight for increased visibility
  • Analog bargraph for fast changing or unstable signals
  • Input Alert provides audible warning against wrong use of input jacks
  • Improved selectable sleep mode for long battery life
  • Access door for fast battery changes without breaking the calibration seal
  • Classic design with new removable holster with built in test lead and probe storage
  • Unique function for accurate measurements of noisy pulse-width modulated AC voltage
  • Measures correctly at the ASD and at the motor terminals
  • Accurately measure the frequency (motor speed), frequency measurement not affected by the ASDs carrier frequency
  • Measure AC current with an optional current clamp accessory
  • Compare reading with the display on the ASD
  • Special shielding blocks high frequency, high-energy noise generated by large drive systems
    • Applications
  • Industrial
  • Maintenance & Repair
  • Test & Measurement
  • Motors/VFD
    • Fluke TL224 SureGrip Silicone Insulated Test Leads
    Features
  • DMM test leads (red, black) with safety shrouded, standard diameter banana plugs
  • Right angle connector on one end and straight connector on the other
  • Reinforced strain relief
  • 4.9 Feet (1.5 m) silicone-insulated wire resists heat and cold
  • CAT IV 600 V, CAT III 1000 V, 10 A rating; CSA listed
    • Fluke AC220 SureGrip Alligator Clips
    Features
  • 0.15 Inch (4 mm) of exposed metal at the tip
  • Probe extenders fit between modular test leads and test probes, increasing the distance between you and a live circuit by 8" (20.5 cm)
  • TP238 and TL224 conform to safety standard IEC 1010-2-031, maximum 1000 V CAT III, 600 V CAT IV, Pollution Degree 2, 10 A
  • Probe extenders conform to safety standard IEC 1010-2-031, maximum 1000 V CAT III, Pollution Degree 2, 10 A

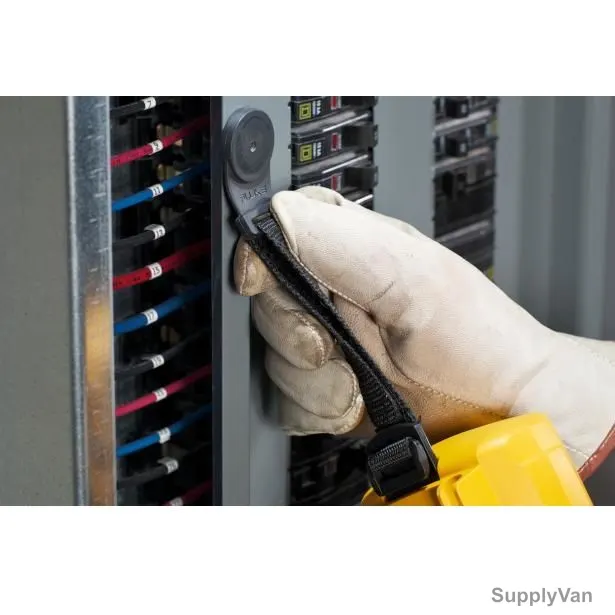

    • Fluke TPAK ToolPak Magnetic Meter Hanger

    Take hands-free measurements with this magnetic meter hanger. The kit allows you to hang your meter in a variety of ways—including on nails, hooks and many other objects—solving any hanging and positioning problem you may face.

    Please note that this product doesn't clip into the Fluke T6 Series like it does for other Fluke meters. Instead, you must simply feed the Velcro loop through the slot on the back of the T6 and Velcro it together.

    Features
  • Powerful magnetic hanger allows you to hang your meter on any metallic surfaces
  • 9 Inch (228.6 mm) hook and loop strap allows you to loop around pipes
  • Hook hanger for hanging on non-magnetic surfaces
  • General purpose hanger allows you to hang your meter on nails, hooks and many other objects
    • Fluke 80BK-A Integrated DMM Temperature Probe
    Features
  • Standard shrouded banana jack
  • Convenient one piece construction

    • 0.05% DC accuracy
    • 6000 counts, 3-3/4 digits
    • 4-1/2 digit mode for precise measurements (20,000 counts)
    • Measure up to 1000VAC and DC
    • Measure up to 10 A, 20 A for up to 30 seconds
    • Built in thermometer lets you carry one less tool (TC probe included)
    • Frequency to 200 kHz and % duty cycle
    • Resistance, continuity and diode test
    • 10,000 µF capacitance range for components and motor caps
    • Min/max-average recording with min/max alert to capture variations automatically
    • Peak capture to record transients as fast as 250 µs
    • Relative mode to remove test lead interference from low ohms measurements

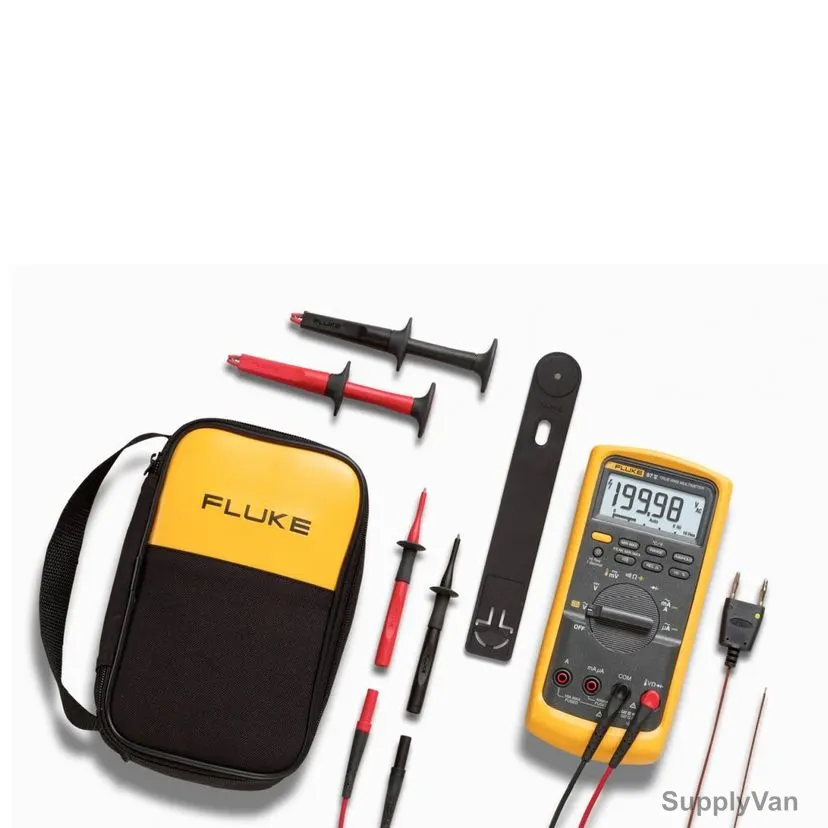

    Items Included:
    1x Fluke 87V Industrial True RMS Multimeter with Temperature, 2x Fluke TL224 SureGrip and trade, Silicone Insulated Test Leads, 2x Fluke AC220 SureGrip and trade; Alligator Clips, 4x Fluke TL238 SureGrip and trade; Test Lead Set for high energy environments, 1x Fluke TPAK ToolPak Magnetic Meter Hanger, 1x Fluke 80BK-A Integrated DMM Temperature Probe, 1x Fluke C35 Soft Carrying Case
    Item Name:
    Electrician Combo Kit
    Model:
    87-5-E2
    Manufacturer:
    Fluke
    Temperature Range:
    -200 to 1090 Deg.C
    Operating Altitude:
    2000 Mtrs
    DC Current Accuracy:
    +/-(0.2% +2)
    AC Current Accuracy:
    +/-(1.0% +2)
    Resistance Accuracy:
    +/-(0.2% +1)
    Display Count:
    6000 Count
    Dimensions:
    201 x 98 x 52mm
    Battery Type:
    Alkaline
    Measuring Voltage Range - AC:
    1000V
    Measuring Voltage Range - DC:
    1000V
    Storage Temperature:
    -40 to 60 Deg.C
    Operating Temperature:
    -20 to 55 Deg.C
    Measuring Current Range - DC:
    +/-(0.2% +2)
    Measuring Current Range - AC:
    10-20A
    Measuring Capacitance Range:
    9999 µF
    DC Voltage Accuracy:
    +/-(0.05% +1)
    AC Voltage Accuracy:
    +/-(0.7% +2)
    Frequency Accuracy:
    +/-(0.005% +1)
    Capacitance Accuracy:
    +/-(1% +2)
    Measuring Resistance Range:
    50 Mohm
    Measuring Frequency Range:
    200kHz
    Battery Life:
    400 Hours typical, without backlight
    Brand Origin (not manufacture):
    United States
    Delivery Time:
    2-7 Days
    Unit:
    Kit
