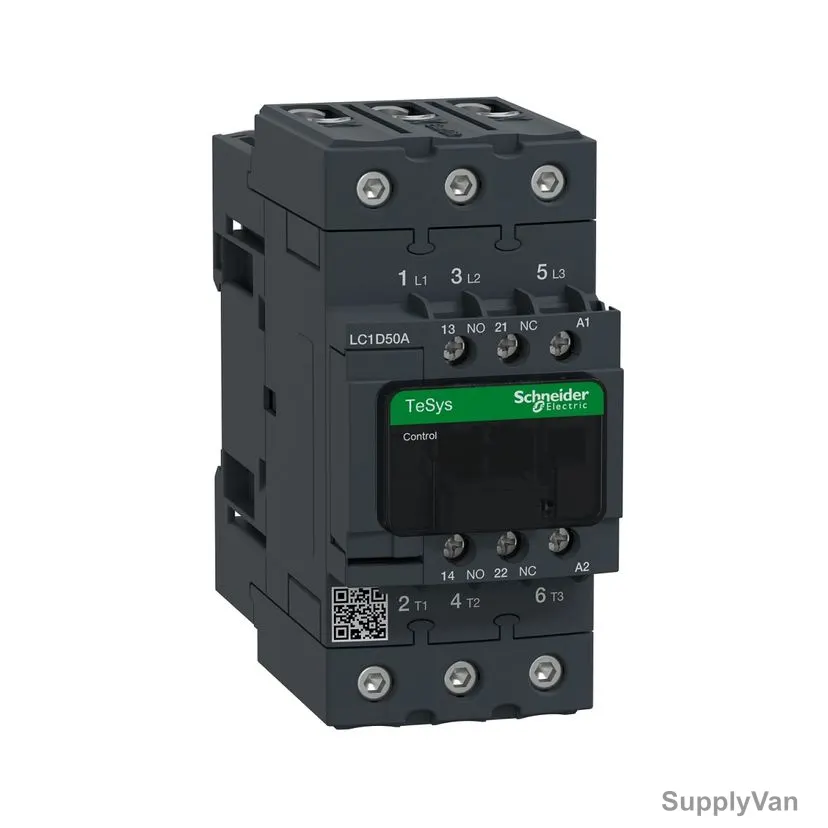

Schneider Contactor, LC1D50AM7, TeSys Deca, 690VAC, 3 Poles, 50A
(No reviews yet)
Write a Review
- Brand:
- Schneider
- SKU:
- 424459852349
- Minimum Purchase:
- 1 unit
- Item Name:
- Contactor
- Model:
- LC1D50AM7
- Product Series:
- TeSys Deca
- Manufacturer:
- Schneider
- Depth:
- 120mm
- Height:
- 122mm
- Operational Voltage:
- 690VAC
- Width:
- 55mm
- Breaking Capacity:
- 900A at 440V
- Current:
- 50A
- Frequency:
- 50/60Hz
- Ingress Protection (IP Rating):
- IP20
- Storage Temperature:
- -60 to 80 Deg.C
- Brand Origin (not manufacture):
- France
- Standards:
- 17807,16651,17806,17805,16652,16653
- Warranty (Subject to Conditions):
- 18 Months
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
eSys D contactor, 3 poles (3NO), for motor control applications up to 50A/440V AC-3/3e (22kW@400V). It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
View AllClose
- overvoltage category: III
- Rated impulse withstand voltage: 6 kV conforming to IEC 60947
- Average impedance: 1.5 mOhm - Ith 80 A 50 Hz for power circuit
- Auxiliary contact composition: 1 NO + 1 NC
- Device short name: LC1D
Item Name: |
Contactor |
Model: |
LC1D50AM7 |
Product Series: |
TeSys Deca |
Manufacturer: |
Schneider |
Depth: |
120mm |
Height: |
122mm |
Operational Voltage: |
690VAC |
Width: |
55mm |
Breaking Capacity: |
900A at 440V |
Current: |
50A |
Frequency: |
50/60Hz |
Ingress Protection (IP Rating): |
IP20 |
Storage Temperature: |
-60 to 80 Deg.C |
Brand Origin (not manufacture): |
France |
Standards: |
17807,16651,17806,17805,16652,16653 |
Warranty (Subject to Conditions): |
18 Months |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
