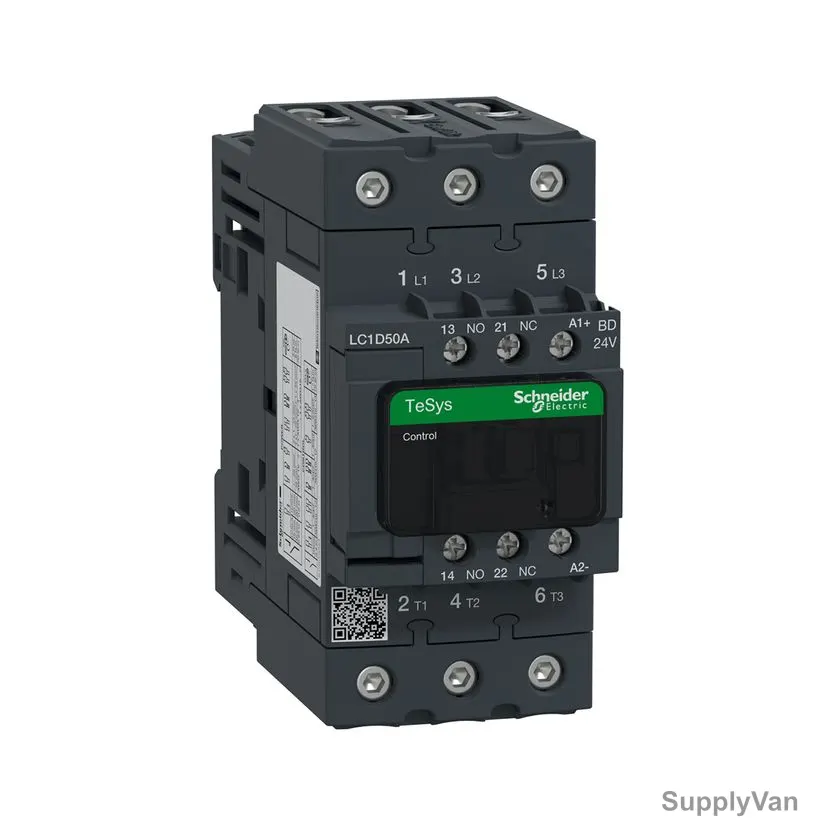

TeSys D contactor, 3 poles (3NO), for motor control applications up to 50A/690V AC-3/3e (22kW@400V). It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60 Deg.C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing.
- Utilisation Category: AC-4, AC-1, AC-3, AC-3e
- Rated Operational Voltage: Power circuit: <= 690 V AC 25...400 Hz, Power circuit: <= 300 V DC
- Rated Operational Current: 50 A (at <60 Deg.C) at <= 440 V AC AC-3 for power circuit
- Control Circuit Voltage: 24VDC
- Contact Compatibility: M4
- Overvoltage Category: III
- Rated Impulse Withstand Voltage: 6 kV
- Mechanical Durability: 10 Mcycles
- Inrush Power: 19W
- Hold-in Power Consumption: 7.4W
- Maximum Operating Rate: 3600 Cyc/h
- Insulation Resistance: 10 mOhm
- Mounting Support: Rail and Plate
