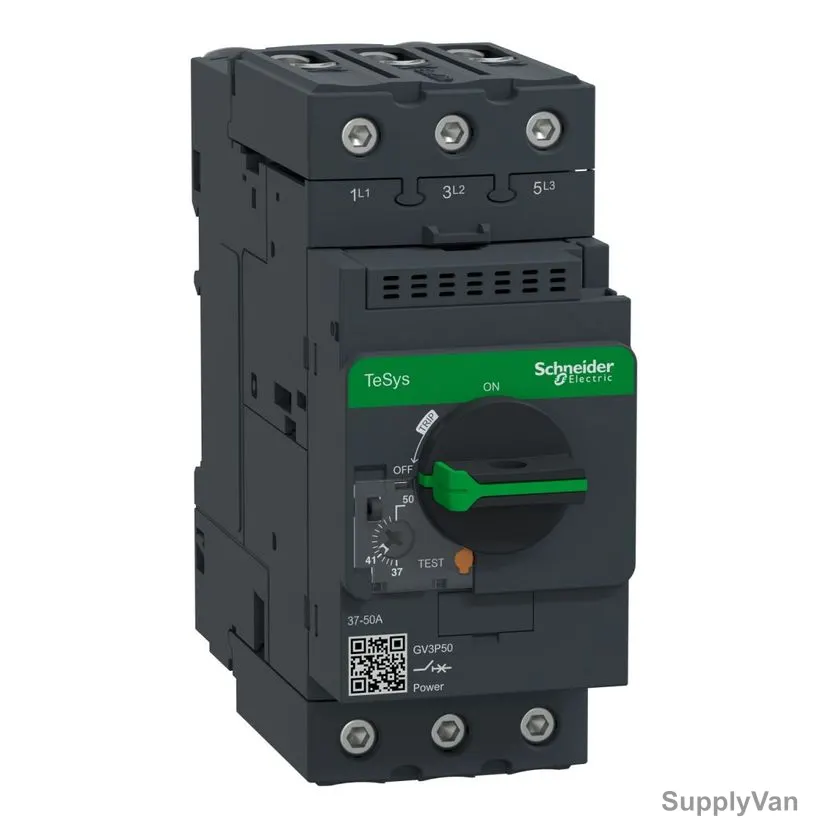

Schneider Electric Motor Circuit Breaker, GV3P50, TeSys Deca, IP20, 3 Pole, 690VAC, 37-50A
(No reviews yet)
Write a Review
- Brand:
- Schneider Electric
- SKU:
- 639427992487
- Minimum Purchase:
- 1 unit
- Item Name:
- Motor Circuit Breaker
- Model:
- GV3P50
- Manufacturer:
- Schneider Electric
- Color:
- Dark Gray
- Width:
- 55mm
- Depth:
- 136mm
- Voltage:
- 690VAC
- Frequency:
- 50/60Hz
- Ingress Protection (IP Rating):
- IP20
- Wattage:
- 8W
- Torque (Nm):
- 5 Nm - on screw clamp terminal
- Storage Temperature:
- -40 to 80 Deg.C
- Amps (A):
- 37-50A
- Height:
- 132mm
- Brand Origin (not manufacture):
- France
- Warranty (Subject to Conditions):
- 18 Months
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The Schneider Electric GV3P50 is a TeSys Deca motor circuit breaker engineered for robust protection and control of three-phase motors in industrial environments. It combines thermal and magnetic trip mechanisms to safeguard motors against overloads, short circuits, and phase failures.
View AllClose
- Mechanical durability: 50000 cycles
- Fire Resistance: 960 Deg.C conforming to IEC 60695-2-11
- Mounting Options: 35mm DIN Rail (clipped) or Panel Mount (screwed with 3 x M4 screws)
- Trip Unit Technology: Thermal-Magnetic
Item Name: |
Motor Circuit Breaker |
Model: |
GV3P50 |
Manufacturer: |
Schneider Electric |
Color: |
Dark Gray |
Width: |
55mm |
Depth: |
136mm |
Voltage: |
690VAC |
Frequency: |
50/60Hz |
Ingress Protection (IP Rating): |
IP20 |
Wattage: |
8W |
Torque (Nm): |
5 Nm - on screw clamp terminal |
Storage Temperature: |
-40 to 80 Deg.C |
Amps (A): |
37-50A |
Height: |
132mm |
Brand Origin (not manufacture): |
France |
Warranty (Subject to Conditions): |
18 Months |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
