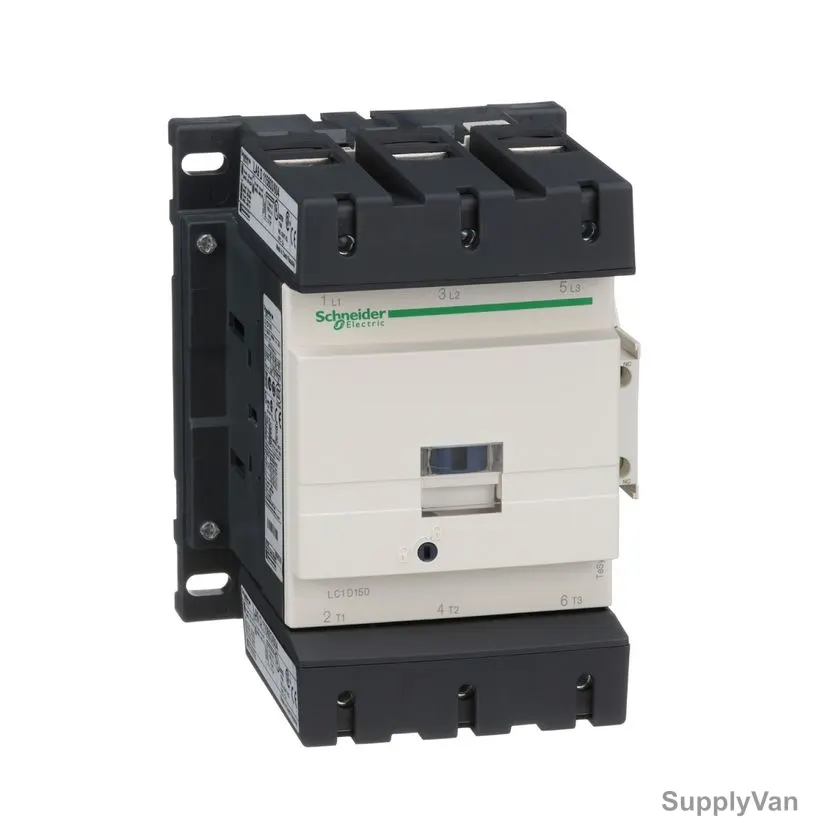

Schneider Electric Contactor, LC1D150M7, TeSys Deca, 3P, 220VAC, 150A
(No reviews yet)
Write a Review
- Brand:
- Schneider Electric
- SKU:
- 236122342695
- Minimum Purchase:
- 1 unit
- Item Name:
- Contactor
- Model:
- LC1D150M7
- Manufacturer:
- Schneider Electric
- Color:
- Black and White
- Load Current (A):
- 150A
- Height (MilliMeter):
- 158mm
- Width (MilliMeter):
- 120mm
- Depth:
- 136mm
- Storage Temperature (Degree Celsius):
- -60 to 80 Deg.C
- Frequency:
- 50/60 Hz
- Voltage:
- 220VAC
- Number of Poles:
- 3P
- Ingress Protection (IP Rating):
- IP20
- Altitude:
- 0 to 3000 Mtrs
- Brand Origin (not manufacture):
- France
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
- Rated Operational Voltage: <= 1000 VAC at 25 - 400 Hz
- Rated Impulse Withstand Voltage: 8 kV conforming to IEC 60947
- Overvoltage Category: III
- Average Impedance: 0.6 mOhm
- Electrical Durability: 0.85 Mcycles 150 A AC-3 at Ue <= 440 V, 1 Mcycles 200 A AC-1 at Ue <= 440 V
- Mounting Support: Rail, Plate
- Mechanical Durability: 8 Mcycles
- Maximum Operating Rate: 1200 cyc/h @60 Deg. C
- Minimum Switching Current: 5 mA for signalling circuit
- Minimum Switching Voltage: 17V for signalling circuit
Item Name: |
Contactor |
Model: |
LC1D150M7 |
Manufacturer: |
Schneider Electric |
Color: |
Black and White |
Load Current (A): |
150A |
Height (MilliMeter): |
158mm |
Width (MilliMeter): |
120mm |
Depth: |
136mm |
Storage Temperature (Degree Celsius): |
-60 to 80 Deg.C |
Frequency: |
50/60 Hz |
Voltage: |
220VAC |
Number of Poles: |
3P |
Ingress Protection (IP Rating): |
IP20 |
Altitude: |
0 to 3000 Mtrs |
Brand Origin (not manufacture): |
France |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
