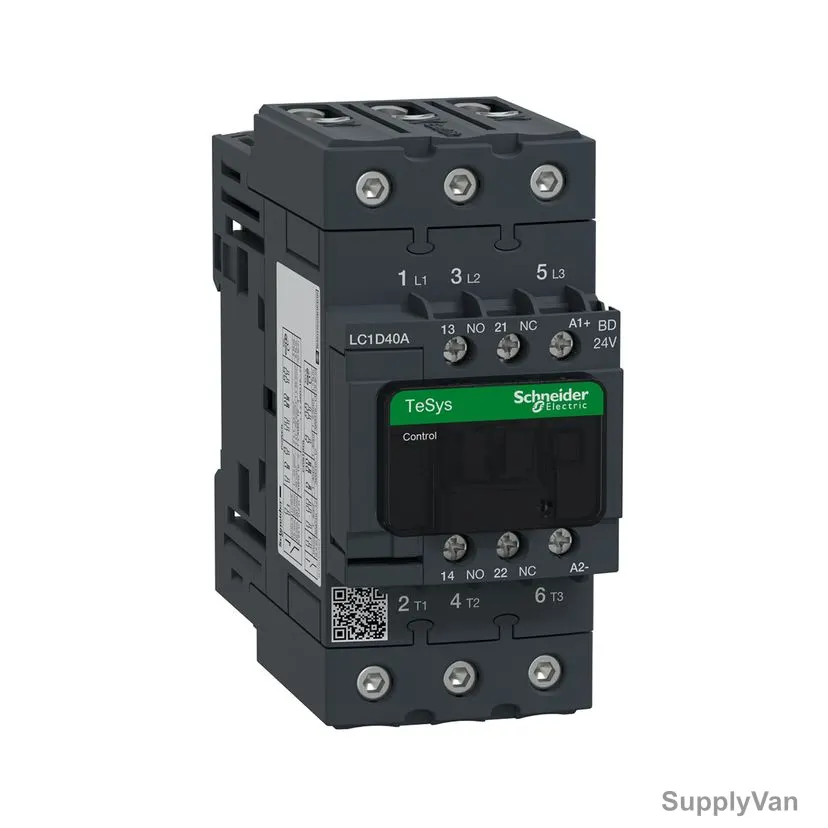

Schneider Electric Contactor, LC1D40ABD, TeSys Deca, 3P, 24VDC Coil, 40A

(No reviews yet) Write a Review
Brand:
Schneider Electric
SKU:
736691768847
Minimum Purchase:
1 unit
Item Name:
Contactor
Model:
LC1D40ABD
Product Series:
TeSys Deca
Manufacturer:
Schneider Electric
Color:
Black
Operating Altitude:
0 to 3000 Mtrs
Height (MilliMeter):
122mm
Width (MilliMeter):
55mm
Depth:
120mm
Breaking Capacity:
800A at 440V
Current:
40A
Operating Ambient Temperature (Degree Celsius):
-40 to 60 Deg.C
Operating Time:
42.5-57.5 ms closing, 16-24 ms opening
Number of Poles:
3P
Number of Contacts:
3 NO
Ingress Protection (IP Rating):
IP20
Impedance:
1.5 mOhm
Application:
Resistive load, Motor control
Brand Origin (not manufacture):
France
Warranty (Subject to Conditions):
18 Months
Delivery Time:
10 Weeks
Unit:
Piece
See Full Product Specs
AED486.00
FREE DELIVERY

Description

TeSys D contactor, 3 poles (3NO), for motor control applications up to 40A/690V AC-3/3e (18.5kW@400V). It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing.
  • Utilisation Category: AC-4, AC-1, AC-3, AC-3e
  • Rated Operational Voltage: Power circuit: <= 690 V AC 25...400 Hz, Power circuit: <= 300 V DC
  • Rated Operational Current: 40 A (at <60 Deg.C) at <= 440 V AC AC-3 for power circuit
  • Control Circuit Voltage: 24VDC
  • Contact Compatibility: M4
  • Overvoltage Category: III
  • Rated Impulse Withstand Voltage: 6 kV
  • Mechanical Durability: 10 Mcycles
  • Inrush Power: 19W
  • Hold-in Power Consumption: 7.4W
  • Maximum Operating Rate: 3600 Cyc/h
  • Insulation Resistance: 10 mOhm
  • Mounting Support: Rail and Plate
