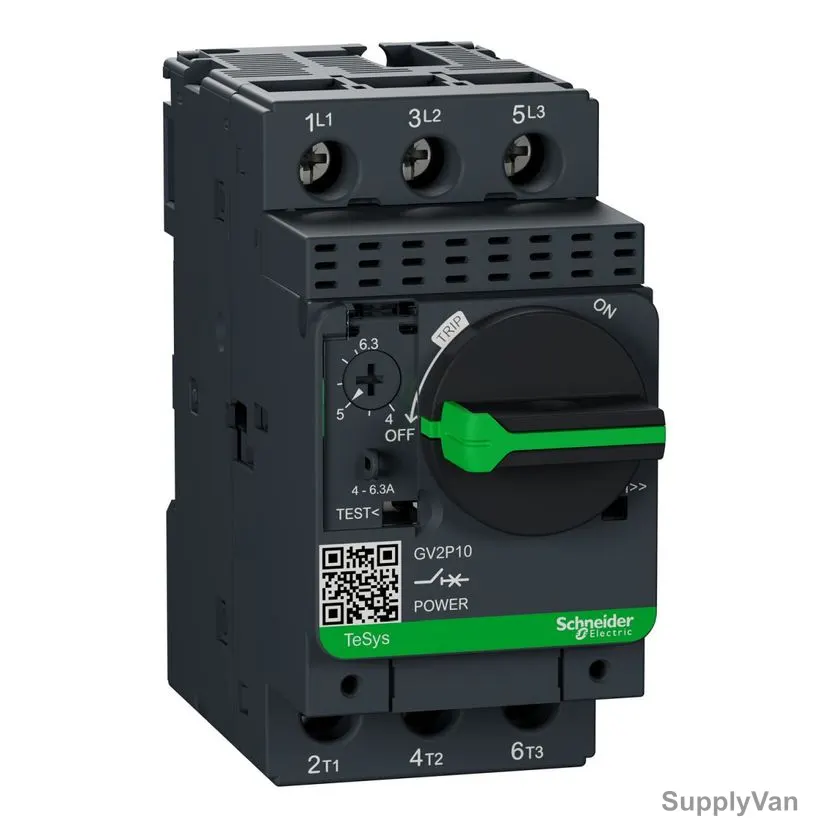

Schneider Electric Motor Circuit Breaker, GV2P10, TeSys Deca, IP20, 3 Pole, 690VAC, 4-6.3A
(No reviews yet)
Write a Review
- Brand:
- Schneider Electric
- SKU:
- 953134445632
- Minimum Purchase:
- 1 unit
- Item Name:
- Motor Circuit Breaker
- Model:
- GV2P10
- Manufacturer:
- Schneider Electric
- Color:
- Dark Grey
- Width:
- 45mm
- Depth:
- 97mm
- Voltage:
- 690VAC
- Frequency:
- 50/60Hz
- Ingress Protection (IP Rating):
- IP20
- Wattage:
- 2.5W
- Torque (Nm):
- 1.7 Nm - on screw clamp terminal
- Storage Temperature:
- -40 to 80 Deg.C
- Amps (A):
- 4-6.3A
- Height:
- 89mm
- Brand Origin (not manufacture):
- France
- Warranty (Subject to Conditions):
- 18 Months
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The Schneider Electric GV2P10 is a 3-pole thermal-magnetic motor circuit breaker from the TeSys Deca (GV2) series, engineered for reliable protection and control of three-phase motors. It offers comprehensive protection against overloads, short circuits, and phase failures, making it suitable for various industrial applications.
View AllClose
- Mechanical durability: 100000 cycles
- Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)
- Easier to install and operate with multi-standard screws
- Sturdy and long-lasting power connection with EverLink terminals
- Digital customer experience for technical documents
- Mounting Options: 35mm DIN Rail (clipped) or Panel Mount (screwed with 2 x M4 screws)
- Fire Resistance: 960 Deg.C conforming to IEC 60695-2-11
Item Name: |
Motor Circuit Breaker |
Model: |
GV2P10 |
Manufacturer: |
Schneider Electric |
Color: |
Dark Grey |
Width: |
45mm |
Depth: |
97mm |
Voltage: |
690VAC |
Frequency: |
50/60Hz |
Ingress Protection (IP Rating): |
IP20 |
Wattage: |
2.5W |
Torque (Nm): |
1.7 Nm - on screw clamp terminal |
Storage Temperature: |
-40 to 80 Deg.C |
Amps (A): |
4-6.3A |
Height: |
89mm |
Brand Origin (not manufacture): |
France |
Warranty (Subject to Conditions): |
18 Months |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
