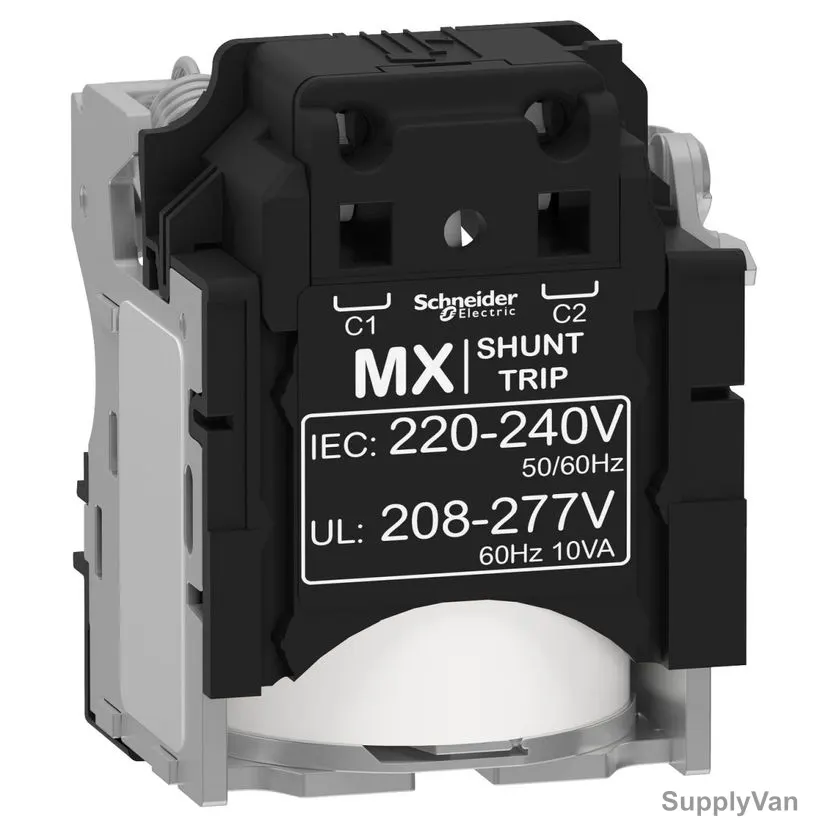

Schneider Electric MX Shunt Trip Molded Case Circuit Breaker, LV429387, ComPacT, 220-240VAC
(No reviews yet)
Write a Review
- Brand:
- Schneider Electric
- SKU:
- 469198263623
- Minimum Purchase:
- 1 unit
- Item Name:
- Molded Case Circuit Breaker
- Model:
- LV429387
- Product Series:
- ComPacT
- Manufacturer:
- Schneider Electric
- Color:
- Grey and Black
- Brand Origin (not manufacture):
- France
- Standards:
- EN/IEC 60947-2
- Certification:
- 759,7048
- Warranty (Subject to Conditions):
- 18 Months
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
This is a MX shunt trip release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 220 to 240 VAC 50/60 Hz, or 208 to 277 VAC 60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. This shunt trip is a UL Listed/CSA Certified circuit breaker accessory.
View AllClose
- Control Circuit Voltage: 220-240VAC @50/60 Hz, 208-277VAC @60 Hz
- Operating Threshold: 0.7-1.1 x Un opening
- Control Signal Type: Impulse, Maintained
- Impulse Duration: >=20 ms
- Supply Inrush Power: 10 VA
- Auxiliary Connection Terminal: Spring 0.5-1.5 sq.mm (AWG 20-AWG 16)
- Wire Stripping Length: 7mm
Item Name: |
Molded Case Circuit Breaker |
Model: |
LV429387 |
Product Series: |
ComPacT |
Manufacturer: |
Schneider Electric |
Color: |
Grey and Black |
Brand Origin (not manufacture): |
France |
Standards: |
EN/IEC 60947-2 |
Certification: |
759,7048 |
Warranty (Subject to Conditions): |
18 Months |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
