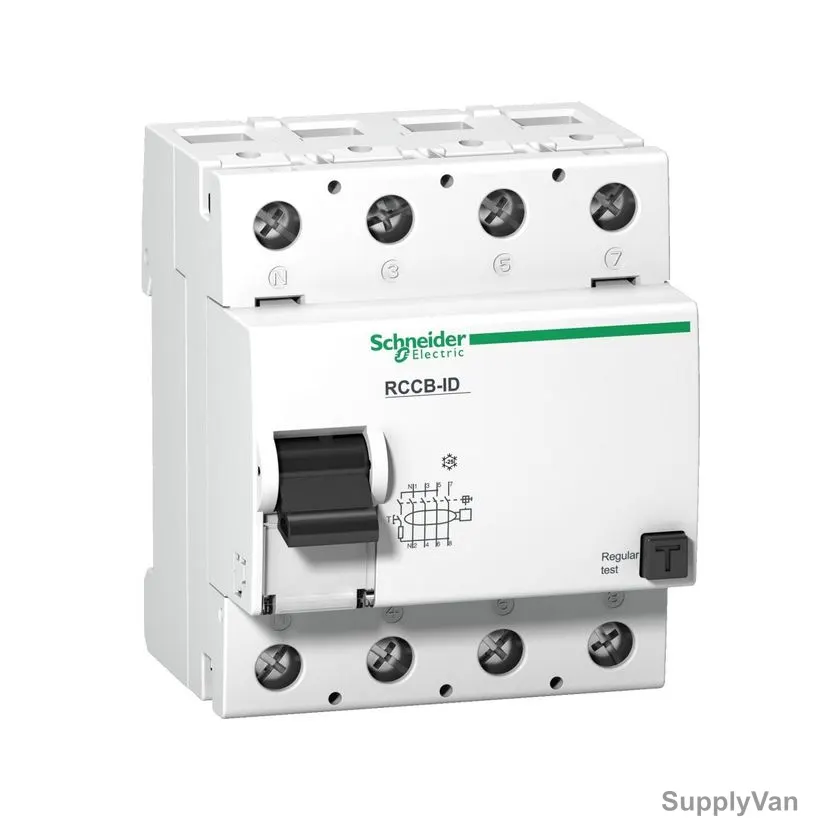

Schneider Electric Residual Current Circuit Breaker, 16907, Acti9, 4 Pole, Class AC, 125A, 300mA
(No reviews yet)
Write a Review
- Brand:
- Schneider Electric
- SKU:
- 998671936763
- Minimum Purchase:
- 1 unit
- Item Name:
- Residual Current Circuit Breaker
- Manufacturer:
- Schneider Electric
- Color:
- Grey
- Depth:
- 76mm
- Width:
- 72mm
- Height:
- 86mm
- Operation Temperature:
- -25 to 40 Deg.C
- Relative Humidity:
- 95 Percent at 55 Deg.C
- Amps (A):
- 125A
- Frequency:
- 50/60 Hz
- Operational Voltage:
- 400V
- Storage Temperature (Degree Celsius):
- -40 to 85 Deg.C
- Torque (Nm):
- 3 N.m
- Ingress Protection (IP Rating):
- IP20
- Safety Class:
- AC
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The Schneider Electric Acti9 Residual Current Circuit Breaker (RCCB) is designed to enhance electrical safety by protecting individuals from electric shock due to indirect contact and mitigating fire hazards caused by insulation faults. This RCCB features a 3-position toggle and a front panel indicator for clear status indication. It is part of Schneider Electric's Green Premium program, reflecting a commitment to environmental sustainability.
View AllClose
- Earth-leakage sensitivity: 300mA
- Mounting support: 35mm symmetrical DIN rail
- Connection pitch: 18mm between phases
- Mechanical durability: 5000 cycles
- Electrical durability: 2000 cycles
- Wire stripping length: 11mm
- Standards: IEC 60947-3, IEC 60947-1, IEC 61008
Item Name: |
Residual Current Circuit Breaker |
Manufacturer: |
Schneider Electric |
Color: |
Grey |
Depth: |
76mm |
Width: |
72mm |
Height: |
86mm |
Operation Temperature: |
-25 to 40 Deg.C |
Relative Humidity: |
95 Percent at 55 Deg.C |
Amps (A): |
125A |
Frequency: |
50/60 Hz |
Operational Voltage: |
400V |
Storage Temperature (Degree Celsius): |
-40 to 85 Deg.C |
Torque (Nm): |
3 N.m |
Ingress Protection (IP Rating): |
IP20 |
Safety Class: |
AC |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
