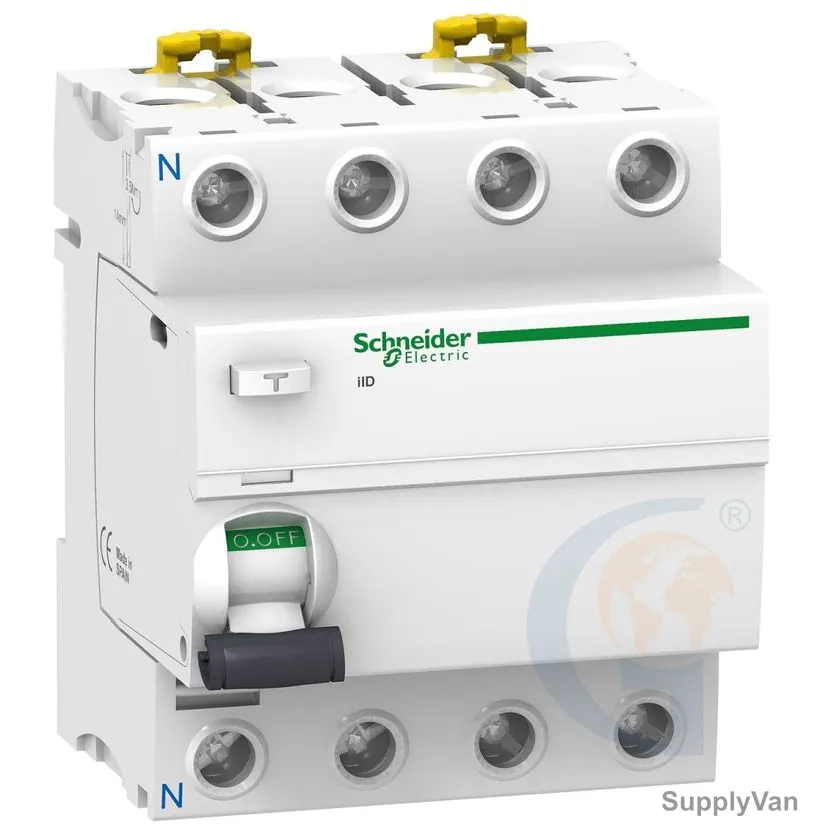

Schneider Electric Residual Current Circuit Breaker, A9R12491, Acti9 iID, 4 Pole, 100mA, 100A
(No reviews yet)
Write a Review
- Brand:
- Schneider Electric
- SKU:
- 859189916661
- Minimum Purchase:
- 1 unit
- Item Name:
- Residual Current Circuit Breaker
- Model:
- A9R12491
- Product Series:
- Acti9 iID
- Manufacturer:
- Schneider Electric
- Color:
- White
- Depth:
- 73.5mm
- Height (MilliMeter):
- 91mm
- Width (MilliMeter):
- 72mm
- Control Type:
- Toggle
- Residual Current Type:
- AC
- Amps (A):
- 100A
- Insulation Voltage:
- 500VAC
- Frequency:
- 50/60 Hz
- Voltage:
- 380-415VAC
- Number of Poles:
- 4P
- Ingress Protection (IP Rating):
- IP20, IP40
- Residual Current:
- 100mA
- Safety Class:
- Type AC
- Storage Temperature:
- -40 to 85 Deg.C
- Brand Origin (not manufacture):
- France
- Standards:
- EN/IEC 61008-1
- Warranty (Subject to Conditions):
- 18 Months
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
- Neutral Position: Left
- Mechanical Durability: 20000 cycles
- Electrical Durability: AC-1: 15000 cycles
- Wire Stripping Length: 14mm for top or bottom connection
- Tightening Torque: 3.5Nm top or bottom
Item Name: |
Residual Current Circuit Breaker |
Model: |
A9R12491 |
Product Series: |
Acti9 iID |
Manufacturer: |
Schneider Electric |
Color: |
White |
Depth: |
73.5mm |
Height (MilliMeter): |
91mm |
Width (MilliMeter): |
72mm |
Control Type: |
Toggle |
Residual Current Type: |
AC |
Amps (A): |
100A |
Insulation Voltage: |
500VAC |
Frequency: |
50/60 Hz |
Voltage: |
380-415VAC |
Number of Poles: |
4P |
Ingress Protection (IP Rating): |
IP20, IP40 |
Residual Current: |
100mA |
Safety Class: |
Type AC |
Storage Temperature: |
-40 to 85 Deg.C |
Brand Origin (not manufacture): |
France |
Standards: |
EN/IEC 61008-1 |
Warranty (Subject to Conditions): |
18 Months |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
