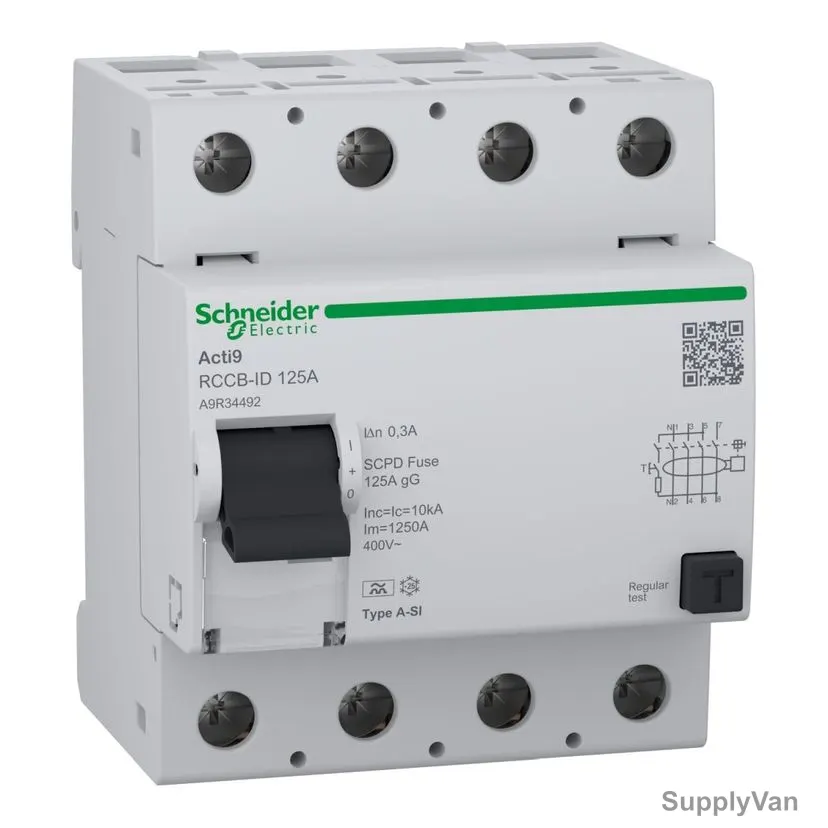

Schneider Electric Residual Current Circuit Breaker, A9R34492, Acti9 RCCB-ID, 4 Pole, 125A, 300mA
(No reviews yet)
Write a Review
- Brand:
- Schneider Electric
- SKU:
- 713385996877
- Minimum Purchase:
- 1 unit
- Item Name:
- Residual Current Circuit Breaker
- Model:
- A9R34492
- Manufacturer:
- Schneider Electric
- Color:
- Grey
- Depth:
- 76mm
- Width:
- 72mm
- Control Type:
- Toggle
- Height:
- 86mm
- Amps (A):
- 125A
- Sensitivity:
- 300mA
- Frequency:
- 50Hz
- Operational Voltage:
- 400VAC
- Breaking Capacity:
- 10 kA
- Torque (Nm):
- 3 Nm
- Mounting Type:
- 35mm symmetrical DIN rail
- Ingress Protection (IP Rating):
- IP20
- Storage Temperature:
- -40 to 85 Deg.C
- Certification:
- CE
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The Schneider Electric A9R34492 is a 4-pole Residual Current Circuit Breaker (RCCB) from the Acti9 iID series, designed for enhanced electrical safety in low-voltage installations. It provides reliable protection against earth leakage currents, reducing the risk of electrical shocks and fire hazards caused by ground faults.
View AllClose
- Mechanical durability: 5000 cycles
- Electrical durability: 2000 cycles
- Wire stripping length: 11mm
- Local signalling: Red/green indicator, Trip indicator
- Part of Acti9 system
- Compliant with IEC/EN61008-2-1 standard
- Protection of people against electric shocks by indirect contact
- Protection of installations against risks of fire
- Easy to install with unified terminal design and wiring indication
Item Name: |
Residual Current Circuit Breaker |
Model: |
A9R34492 |
Manufacturer: |
Schneider Electric |
Color: |
Grey |
Depth: |
76mm |
Width: |
72mm |
Control Type: |
Toggle |
Height: |
86mm |
Amps (A): |
125A |
Sensitivity: |
300mA |
Frequency: |
50Hz |
Operational Voltage: |
400VAC |
Breaking Capacity: |
10 kA |
Torque (Nm): |
3 Nm |
Mounting Type: |
35mm symmetrical DIN rail |
Ingress Protection (IP Rating): |
IP20 |
Storage Temperature: |
-40 to 85 Deg.C |
Certification: |
CE |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
