Spraytech DQ Series Tangential Entry Full Cone Spray Nozzles (Clip On Type)
(No reviews yet)
Write a Review
- Brand:
- Spraytech
- SKU:
- 637733419151
- Minimum Purchase:
- 1 unit
- Item Name:
- Spray Nozzle
- Product Series:
- DQ
- Manufacturer:
- Spraytech
- Brand Origin (not manufacture):
- India
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
Uniform Full cone spray pattern with fine droplets.

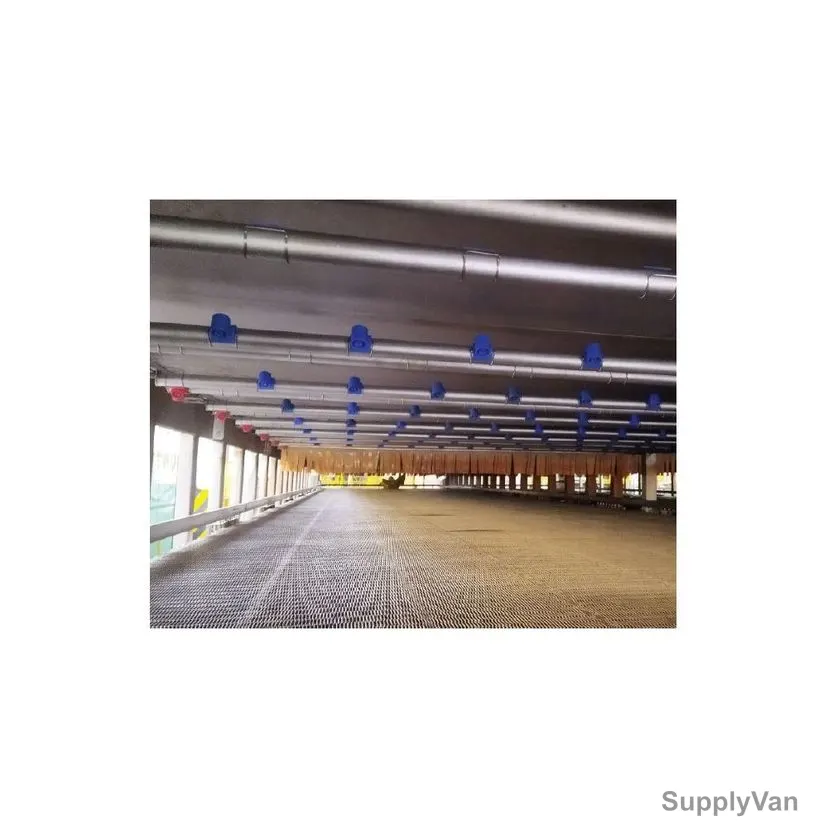

Application: Cooling tunnel, Pasteurizer
Size: suitable for 1", 1-1/2" pipe
Spray angle: 90°
Materials: Glass filled PP
Colour: D blue, Red
O-ring: (NBR) Nitrile Rubber, (FKM) Viton (optional)
Blue - 22 LPM @ 2 BAR
Red - 16 LPM @ 2 BAR
Item Name: |
Spray Nozzle |
Product Series: |
DQ |
Manufacturer: |
Spraytech |
Brand Origin (not manufacture): |
India |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
