Spraytech EG Series Slotted Spray Ball Stainless Steel Versions
(No reviews yet)
Write a Review
- Brand:
- Spraytech
- SKU:
- 258466252429
- Minimum Purchase:
- 1 unit
- Item Name:
- Spray Nozzle
- Product Series:
- EG
- Manufacturer:
- Spraytech
- Brand Origin (not manufacture):
- India
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

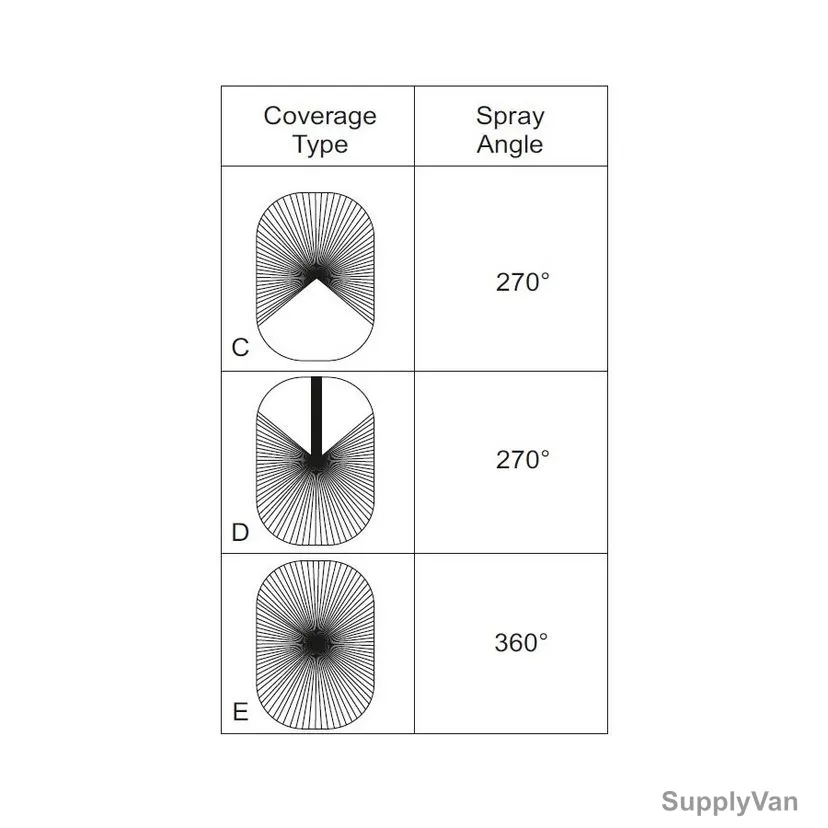

EG Series Slotted spray ball series are available with different connection design that it is a female thread and clip-on connection as standard. Weld-on or tri-clamp connection on request. The simple design high quality construction and having a good efficiency and applicable for general purpose application and it is available in coverage of 270˚
up and down and 360˚.
End Connection : X – BSP, Y - BSPT, Z – NPT Available.
Male Connection On Request
View AllClose
Features : Double sided bearing for effortless rotation Best suitable for SS reactors, Pharmaceutical Vessels
Spray Angle : 270 Degree, 360 Degree
Cleaning Diameter : Upto 25 Meters
Type : Self-rotating
Material : SS304, SS316
Spray Angle : 270 Degree, 360 Degree
Cleaning Diameter : Upto 25 Meters
Type : Self-rotating
Material : SS304, SS316
| MODEL NO. | SPRAY | CONNECTION | FLOW CAPACITY IN LPM AT DIFFERENT PRESSURE | G/A DIMENSION. MM | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRESSURE [BAR] | ||||||||||||||||
| 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1” | 1 1/4” | ||||||||||
| 1.5 | 2 | 3 | 5 | 7 | CONN. | H | D | |||||||||
| EG2.100 | C/D/E | 8.66 | 10.00 | 12.25 | 15.81 | 18.71 | 1/8" | 37 | 17 | |||||||
| EG2.150 | C/D/E | 12.99 | 15.00 | 18.37 | 23.72 | 28.06 | 1/4" | 48 | 21.5 | |||||||
| EG2.200 | C/D/E | 17.32 | 20.00 | 24.49 | 31.62 | 37.42 | Weight (Metals) = XX gms. Approx | |||||||||
| EG2.250 | C/D/E | 21.65 | 25.00 | 30.62 | 39.53 | 46.77 | 3/8" | 60 | 27 | |||||||
| EG2.300 | C/D/E | 25.98 | 30.00 | 36.74 | 47.43 | 56.12 | Weight (Metals) = XX gms. Approx | |||||||||
| EG2.350 | C/D/E | 30.31 | 35.00 | 42.87 | 55.34 | 65.48 | 1/2" | 77 | 33 | |||||||
| EG2.400 | C/D/E | 34.64 | 40.00 | 48.99 | 63.25 | 74.83 | Weight (Metals) = XX gms. Approx | |||||||||
| EG2.520 | C/D/E | 45.03 | 52.00 | 63.69 | 82.22 | 97.28 | 3/4" | 98 | 41 | |||||||
| EG2.600 | C/D/E | 51.96 | 60.00 | 73.48 | 94.87 | 112.25 | Weight (Metals) = XX gms. Approx | |||||||||
| EG2.700 | C/D/E | 60.62 | 70.00 | 85.73 | 110.68 | 130.96 | 1" | 104 | 47.5 | |||||||
| EG2.800 | C/D/E | 69.28 | 80.00 | 97.98 | 126.49 | 149.67 | Weight (Metals) = XX gms. Approx | |||||||||
| EG2.900 | C/D/E | 77.94 | 90.00 | 110.23 | 142.30 | 168.37 | 1 1/4" | 119 | 58 | |||||||
| EG3.100 | C/D/E | 86.60 | 100.0 | 122.11 | 158.11 | 187.08 | Weight (Metals) = XX gms. Approx | |||||||||
| EG3.110 | C/D/E | 95.26 | 110.0 | 134.72 | 173.93 | 205.79 | ||||||||||
| EG3.120 | C/D/E | 103.92 | 120.0 | 149.97 | 189.74 | 224.50 | ||||||||||
| EG3.130 | C/D/E | 112.98 | 130.0 | 159.22 | 205.55 | 243.21 | ||||||||||
| EG3.140 | C/D/E | 121.24 | 140.0 | 171.46 | 221.36 | 261.92 | ||||||||||
| EG3.150 | C/D/E | 129.90 | 150.0 | 183.71 | 237.17 | 280.62 | ||||||||||
| EG3.160 | C/D/E | 138.56 | 160.0 | 195.96 | 252.98 | 299.33 | ||||||||||
| EG3.170 | C/D/E | 147.22 | 170.0 | 208.21 | 268.79 | 318.04 | ||||||||||
| EG3.180 | C/D/E | 155.88 | 180.0 | 220.45 | 284.60 | 336.75 | ||||||||||
| EG3.190 | C/D/E | 164.54 | 190.0 | 232.70 | 300.42 | 355.46 | ||||||||||
| EG3.200 | C/D/E | 173.21 | 200.0 | 244.95 | 316.23 | 374.17 | ||||||||||
End Connection : X – BSP, Y - BSPT, Z – NPT Available.
Male Connection On Request
