Weicon AN 301-38 Retaining Cylindrical Assemblies, 30138150, Weiconlock, 50ML

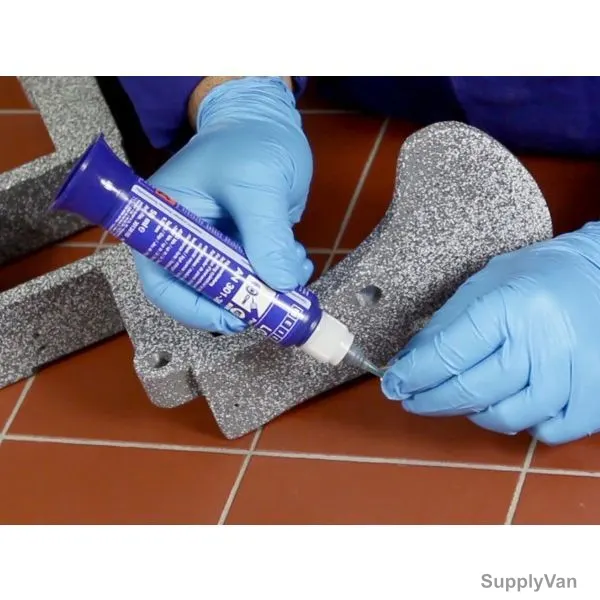

WEICONLOCK is ready for use and should be applied evenly direct from the bottle/tube with the dispensing tip (avoid direct contact of dispensing tip with metal). On press fitted parts and larger cylindrical assemblies a thin and uniform layer should be applied on both surfaces. Join parts quickly. For sliding seats, turn the parts against each other when joining for an optimal distribution of the adhesive. Joint parts should not be moved until handling strength is reached. Do not pour back into the bottle any WEICONLOCK fluid which had contact with metal; even smallest metal particles will cause the content of the bottle to cure. In series construction, the use of manual or automatic applicators is recommended.
Technical Data

Viscosity at 25 Deg.C According to Brookfield: 2.000 - 3.000 mt mPa新

Max. Gap Bridging: 0.2mm

Breakaway Strength (Thread): 30 - 40 Nm

Prevailing Stregth: 45 - 60 Nm

Shear Strength (DIN 54452): 20 - 25 N/sq.mm

Handling Strength at Room Temperature: 5 Min

Final Strength (100%) After: 2 to 4 Hrs

Temperature Resistance: -60 to +150 Deg.C

• For threaded joints up to M36
