Weicon AN 302-25 Pipe and Thread Sealing, 30225150, Weiconlock, 50ML
(No reviews yet)
Write a Review
- Brand:
- Weicon
- SKU:
- 623557928483
- Minimum Purchase:
- 1 unit
- Item Name:
- Pipe and Thread Sealing
- Product Series:
- Weiconlock
- Manufacturer:
- Weicon
- Color:
- Brown
- Size:
- 50ml
- Final Strength:
- 3 to 6 Hrs
- Height:
- 19cm
- Care Instructions:
- WEICONLOCK can be stored in the unopened original container for at least 24 months at room temperature. Keep away from heat sources and direct sunlight. The air in the bottle/tube keeps WEICONLOCK liquid.
- Temperature Resistance:
- -60 to 150 Deg.C
- Brand Origin (not manufacture):
- Germany
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

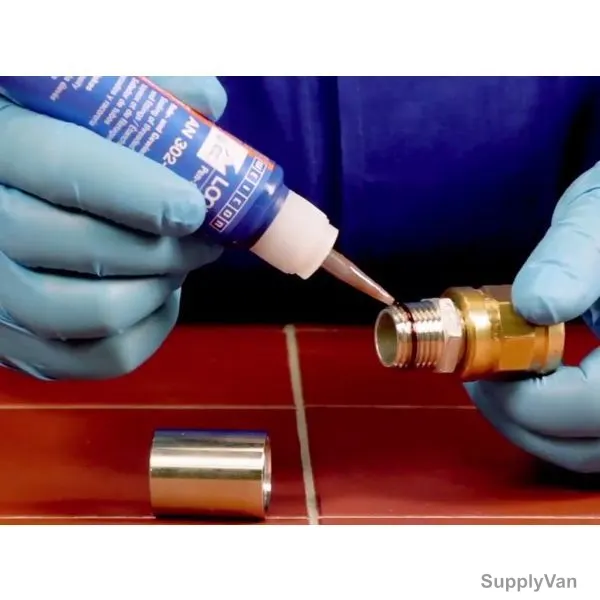

Screw pipe threads together and tighten until desired orientation. When using as flange sealing apply a continuous bead on one side. Join and tighten parts quickly. Do not pour back into the bottle any WEICONLOCK fluid which had contact with metal; even smallest metal particles will cause the content of the bottle to cure. In series construction, the use of manual or automatic applicators is recommended.Technical DataFor Threaded Joints Upto: M80 R 3 Inch Viscosity at 25 Deg.C According to Brookfield: 6.000 - 30.000 mt mPa新 Max. Gap Bridging: 0.3mm Breakaway Strength (Thread): 5 - 8 Nm Prevailing Stregth: 2 - 4 Nm Shear Strength (DIN 54452): 3 - 5 N/sq.mm Handling Strength at Room Temperature: 15 - 30 Min Final Strength (100%) After: 3 - 6 Hrs Temperature Resistance: -60 to 150 Deg.C
View AllClose
- Higher viscosity
- Low strength
- Easy disassembly
Item Name: |
Pipe and Thread Sealing |
Product Series: |
Weiconlock |
Manufacturer: |
Weicon |
Color: |
Brown |
Size: |
50ml |
Final Strength: |
3 to 6 Hrs |
Height: |
19cm |
Care Instructions: |
WEICONLOCK can be stored in the unopened original container for at least 24 months at room temperature. Keep away from heat sources and direct sunlight. The air in the bottle/tube keeps WEICONLOCK liquid. |
Temperature Resistance: |
-60 to 150 Deg.C |
Brand Origin (not manufacture): |
Germany |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
