Weicon AN 302-80 Pipe and Thread Sealing, 30280150, Weiconlock, 50ML

(No reviews yet) Write a Review
Brand:
Weicon
SKU:
371267326883
Minimum Purchase:
1 unit
Item Name:
Pipe and Thread Sealing
Product Series:
Weiconlock
Manufacturer:
Weicon
Color:
Green
Size:
50ml
Shear Strength:
20-30 N/sq.mm
Final Strength:
6/12 Hrs
Temperature Resistance:
-60 to +200 Deg.C
Brand Origin (not manufacture):
Germany
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
  • Weicon AN 302-80 Pipe and Thread Sealing, 30280150, Weiconlock, 50ML
  • Weicon AN 302-80 Pipe and Thread Sealing, 30280150, Weiconlock, 50ML
AED110.00
FREE DELIVERY

Description

Surface pre-treatment
  • In general, WEICONLOCK does not require special pre-treatment as slightly oily surfaces (e.g. on as received parts) will be tolerated. However, best results will be achieved on cleaned, degreased parts (use WEICON Surface Cleaner). If required, the parts should be slightly roughened.
    • Processing

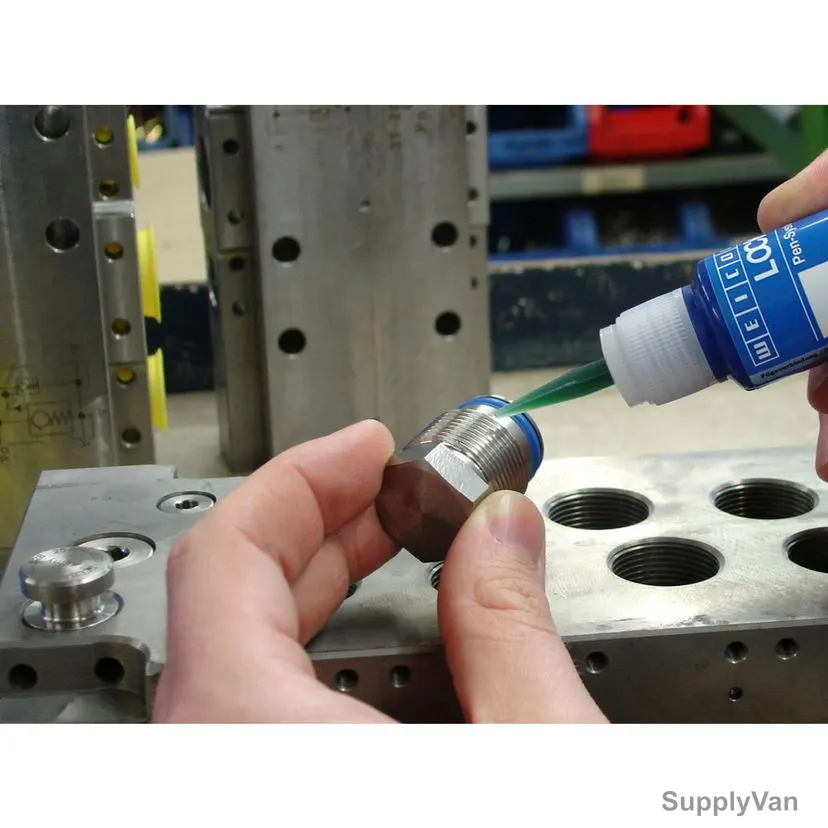

  • WEICONLOCK is ready for use and should be applied evenly direct from the bottle/tube with the dispensing tip (avoid direct contact of dispensing tip with metal). For sealing applications, apply WEICONLOCK in circular options on the thread. Assemble and tighten parts. Do not pour back into the bottle any WEICONLOCK fluid which had contact with metal; even smallest metal particles will cause the content of the bottle to cure. In series construction, the use of manual or automatic applicators is recommended.
    • Storage
  • WEICONLOCK can be stored in the unopened original container for at least 24 months at room temperature. Keep away from heat sources and direct sunlight. The air in the bottle/tube keeps WEICONLOCK liquid.
    • Technical Data:
  • Colour: Green
  • Fluorescent: Yes
  • For threaded joints up to: M5
  • Viscosity at 25 Deg.C (+77 Deg.F) according to Brookfield: 10 - 20 mPa·s
  • Max. Gap Bridging: 0.07 mm
  • Breakaway strength (Thread): 15 - 25 Nm
  • Prevailing strength: 30 - 40 Nm
  • Shear strength N sq.mm (DIN 54452): 8 - 12 N/sq.mm
  • Handling strength at room temperature: 5 - 20 min.
  • Final strength (100%) after: 3 h
  • Temperature resistance: -60 to +150 Deg.C
  • ISSA-Code: 75.628.28/29/30
  • IMPA-Code: 815207/08/09

    • Higher viscosity
    • High strength
    • Hard to disassemble
    Item Name:
    Pipe and Thread Sealing
    Product Series:
    Weiconlock
    Manufacturer:
    Weicon
    Color:
    Green
    Size:
    50ml
    Shear Strength:
    20-30 N/sq.mm
    Final Strength:
    6/12 Hrs
    Temperature Resistance:
    -60 to +200 Deg.C
    Brand Origin (not manufacture):
    Germany
    Delivery Time:
    2-7 Days
    Unit:
    Piece
