Weicon Ceramic W Epoxy Resin, 10460002, 0.2 Kg
(No reviews yet)
Write a Review
- Brand:
- Weicon
- SKU:
- 297953951357
- Minimum Purchase:
- 1 unit
- Item Name:
- Epoxy Resin
- Manufacturer:
- Weicon
- Size:
- 0.2 Kg
- Application Area:
- Machine and System construction, Mill construction, Apparatus engineering, and in many other industrial applications
- Curing Time:
- 9 hrs
- Viscosity:
- 600000 MPa
- Tensile Strength:
- 65 MPa
- Hardness:
- 87 +/-3
- Elongation at Break:
- 0.8%
- Processing Temperature:
- +15 to 40 Deg.C
- Mixing Ratio by Weight:
- 100:33
- Mixing Ratio by Volume:
- 100:35
- Density:
- 1.6 g/cu.cm
- Max. Layer Thickness:
- 10mm
- Temperature Resistance:
- -35 to +260 Deg.C
- Heating Capacity:
- 0.87 J
- Thermal Conductivity:
- 0.7 W/mK
- Final Strength:
- 24 hrs
- Compressive Strength:
- 89 MPa
- Color After Curing:
- White
- Impact Strength:
- 16 kJ/sq.m
- Bending Strength:
- 10 MPa
- Adhesion Strength:
- 7 MPa
- Application:

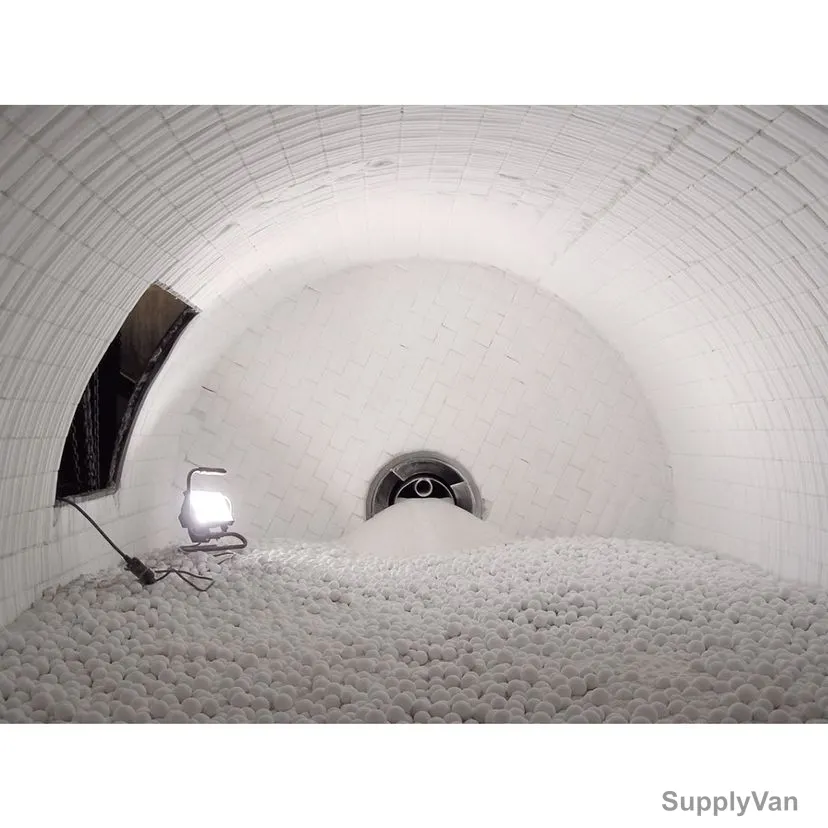

- Bonding or lining of aluminium oxide stones in mill construction, Lining of heavily stressed pump housings, Wear protection for slide bearings, Slides and pipes and wherever darker products are not desired for optical reasons
- Brand Origin (not manufacture):
- Germany
- Product Size L x B x H (Cms):
- 19.4L x 11B x 11.8H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
Weicon Ceramic W is pasty, mineral-filled, temperature-resistant up to +150 degree celsius (briefly up to +260 degree celsius) and resistant to chemicals. It offers high wear protection and abrasion resistance. Weicon Ceramic W has a non-sag property and can be spread with a spatula. It can be applied on vertical surfaces and even overhead. Weicon Ceramic W is suited for the bonding or lining of aluminium oxide stones in mill construction, for the lining of heavily stressed pump housings, as wear protection for slide bearings, slides and pipes and wherever darker products are not desired for optical reasons. Weicon Ceramic W can be used in machine and system construction, mill construction, apparatus engineering, and in many other industrial applications.
View AllClose
- Pasty
- Mineral-filled
- Extremely wear resistant
Item Name: |
Epoxy Resin |
Manufacturer: |
Weicon |
Size: |
0.2 Kg |
Application Area: |
Machine and System construction, Mill construction, Apparatus engineering, and in many other industrial applications |
Curing Time: |
9 hrs |
Viscosity: |
600000 MPa |
Tensile Strength: |
65 MPa |
Hardness: |
87 +/-3 |
Elongation at Break: |
0.8% |
Processing Temperature: |
+15 to 40 Deg.C |
Mixing Ratio by Weight: |
100:33 |
Mixing Ratio by Volume: |
100:35 |
Density: |
1.6 g/cu.cm |
Max. Layer Thickness: |
10mm |
Temperature Resistance: |
-35 to +260 Deg.C |
Heating Capacity: |
0.87 J |
Thermal Conductivity: |
0.7 W/mK |
Final Strength: |
24 hrs |
Compressive Strength: |
89 MPa |
Color After Curing: |
White |
Impact Strength: |
16 kJ/sq.m |
Bending Strength: |
10 MPa |
Adhesion Strength: |
7 MPa |
Application: |
Bonding or lining of aluminium oxide stones in mill construction, Lining of heavily stressed pump housings, Wear protection for slide bearings, Slides and pipes and wherever darker products are not desired for optical reasons |
Brand Origin (not manufacture): |
Germany |
Product Size L x B x H (Cms): |
19.4L x 11B x 11.8H |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
