Euroboor Pneumatic Magnetic Drilling Machine, AIR.55, 55MM Cutting Dia
(No reviews yet)
Write a Review
- Brand:
- Euroboor
- SKU:
- 922397638931
- Minimum Purchase:
- 1 unit
- Item Name:
- Magnetic Drilling Machine
- Model:
- AIR.55
- Manufacturer:
- Euroboor
- Color:
- Grey and Black
- Frequency:
- 50-60Hz
- Length:
- 380mm
- Width:
- 245mm
- Max. Pressure:
- 6.3 Bar
- Cutting Diameter:
- 12-55mm
- Countersink Diameter:
- 12-55mm
- Twist Drill Diameter:
- 1-23mm
- Connection Size:
- 19.05mm
- Stroke Width:
- 167mm
- Maximum Height:
- 705mm
- Minimum Height:
- 615mm
- Rotation Angle:
- Clockwise
- Magnetic Force:
- 900 Kg
- Power Source Type:
- Electric
- RPM (no load):
- 380 RPM
- Flow Rate:
- 66 Cubic.m/hr
- Application:
- Drilling, Countersinking
- Brand Origin (not manufacture):
- Netherlands
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

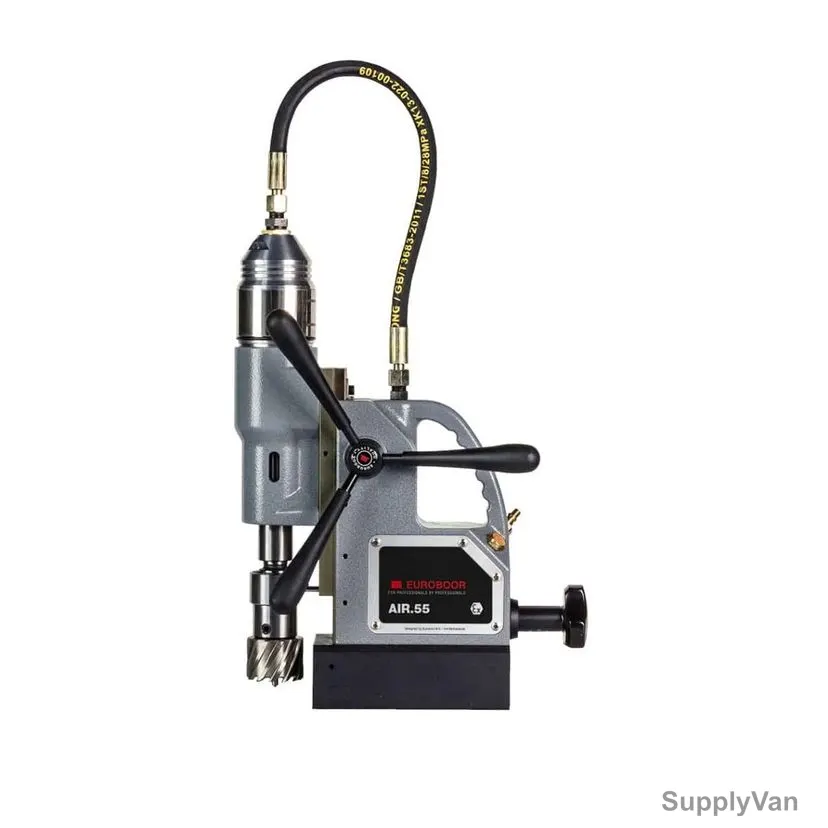

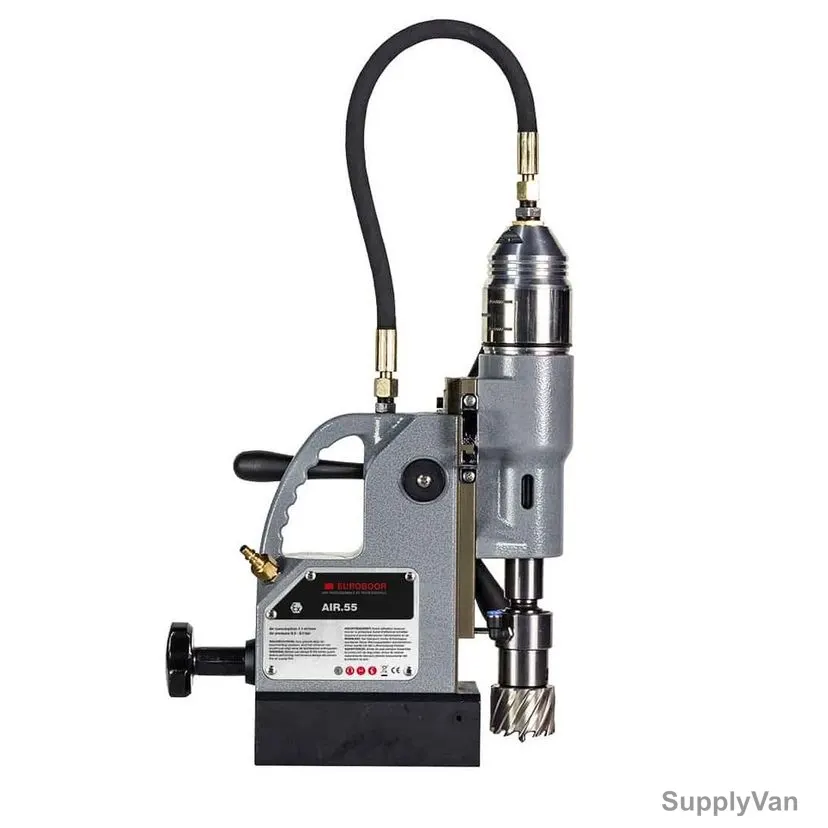

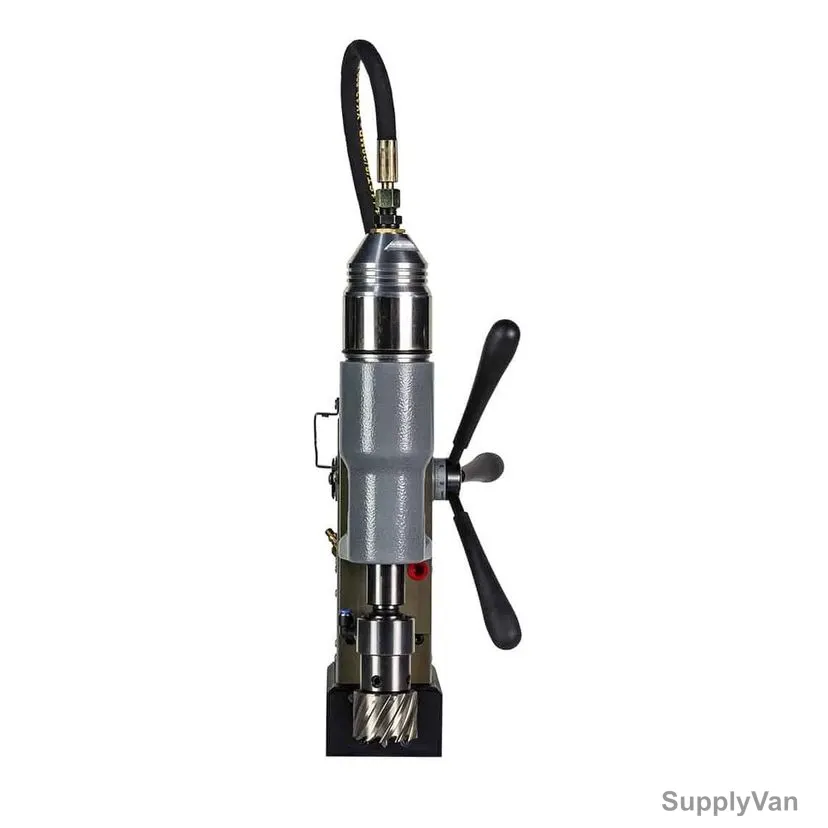

The portable Euroboor AIR.55 pneumatic drilling machine is equipped with an air-powered, spark-free motor and a non-electric, permanent magnet base. Connected to a compressor, it can be used for drilling on flat workpieces where electrical machines are less convenient or not allowed, especially in areas and spaces with potentially explosive atmospheres, such as offshore and petrochemical industries, as well as mining.
View AllClose
- Single operation knob for magnet and motor with deadmans control
- Permanent, non-electric monobloc magnet system
- No loss of magnetic grip in case of electric power cuts or fluctuations
- Powerful hold, even on thinner steel thicknesses
- Magnet dimension: 18.3 x 10 x 5.5cm
Item Name: |
Magnetic Drilling Machine |
Model: |
AIR.55 |
Manufacturer: |
Euroboor |
Color: |
Grey and Black |
Frequency: |
50-60Hz |
Length: |
380mm |
Width: |
245mm |
Max. Pressure: |
6.3 Bar |
Cutting Diameter: |
12-55mm |
Countersink Diameter: |
12-55mm |
Twist Drill Diameter: |
1-23mm |
Connection Size: |
19.05mm |
Stroke Width: |
167mm |
Maximum Height: |
705mm |
Minimum Height: |
615mm |
Rotation Angle: |
Clockwise |
Magnetic Force: |
900 Kg |
Power Source Type: |
Electric |
RPM (no load): |
380 RPM |
Flow Rate: |
66 Cubic.m/hr |
Application: |
Drilling, Countersinking |
Brand Origin (not manufacture): |
Netherlands |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
