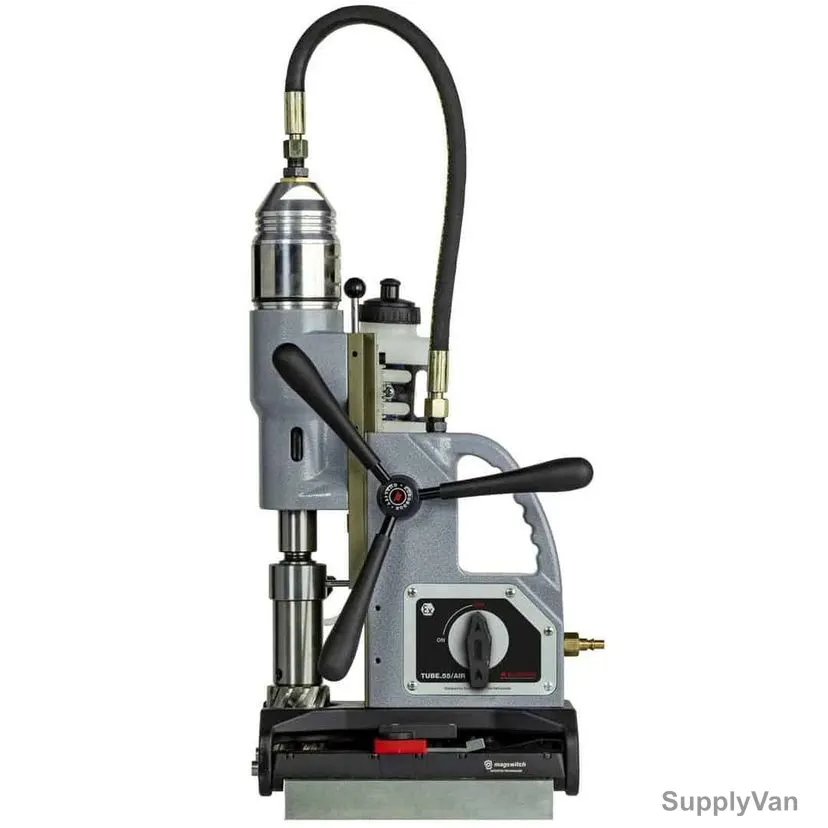

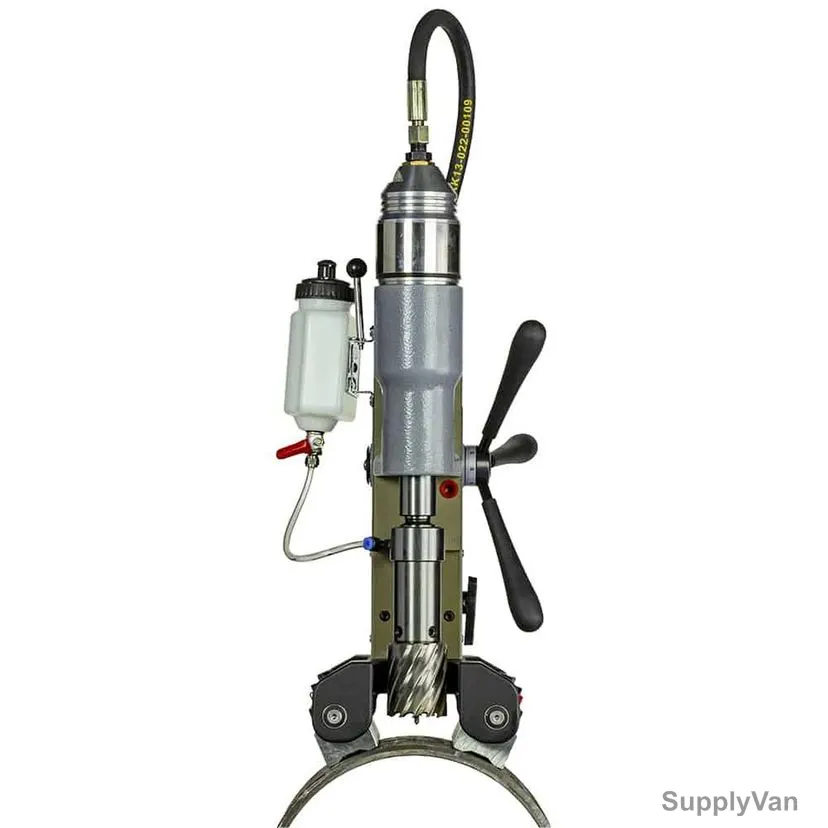

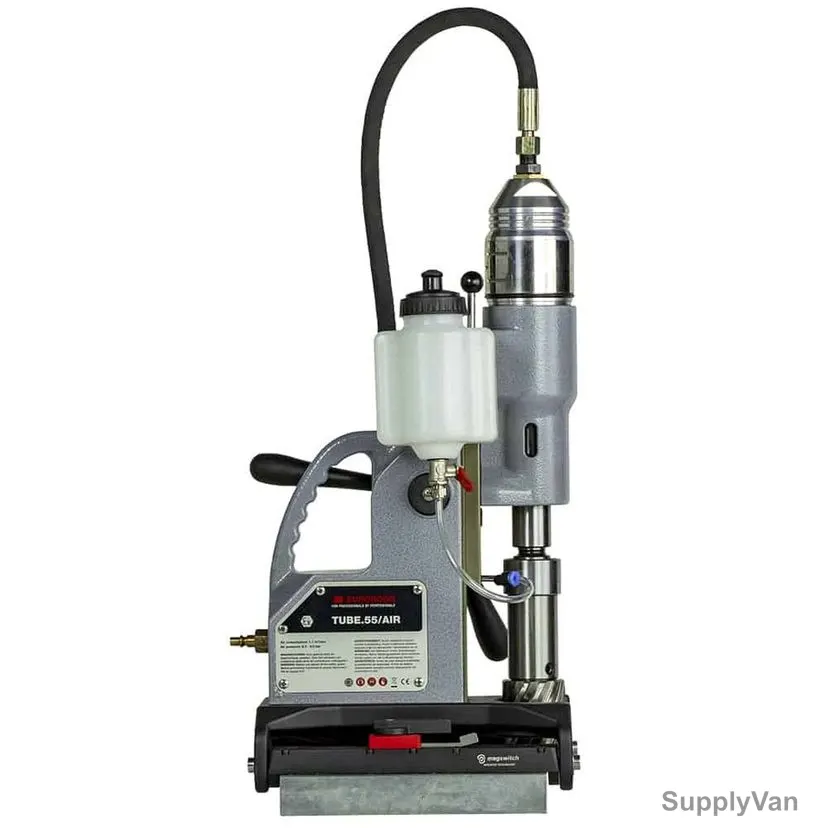

Euroboor Pneumatic Magnetic Drilling Machine, TUBE.55/AIR, 55MM Cutting Dia
(No reviews yet)
Write a Review
- Brand:
- Euroboor
- SKU:
- 685279856966
- Minimum Purchase:
- 1 unit
- Item Name:
- Magnetic Drilling Machine
- Model:
- TUBE.55/AIR
- Manufacturer:
- Euroboor
- Color:
- Grey and Black
- Length:
- 345mm
- Height:
- 730mm
- Width:
- 245mm
- Max. Pressure:
- 6.3 Bar
- Cutting Diameter:
- 12-55mm
- Countersink Diameter:
- 12-55mm
- Twist Drill Diameter:
- 1-23mm
- Connection Size:
- 19.05mm
- Stroke Width:
- 167mm
- Maximum Height:
- 730mm
- Minimum Height:
- 630mm
- Rotation Angle:
- Clockwise
- Magnetic Force:
- 900 Kg
- Power Source Type:
- Electric
- RPM (no load):
- 380 RPM
- Application:
- Countersinking, Pipe/Tube Mounted Drilling
- Brand Origin (not manufacture):
- Netherlands
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The portable Euroboor TUBE.55/AIR pneumatic drilling machine is equipped with an air-powered, spark-free motor and a non-electric, permanent dual magnet base. Connected to a compressor, it can be used for drilling on round as well as flat workpieces where electrical machines are less convenient or not allowed, especially in areas and spaces with potentially explosive atmospheres, such as offshore and petrochemical industries, as well as mining.
View AllClose
- Air-powered motor system
- Powerful, spark-free, explosion-safe motor
- Large 167mm or 6 9/16 stroke
- Automatic, integrated lubrication and cooling system
- Anti-static construction
Item Name: |
Magnetic Drilling Machine |
Model: |
TUBE.55/AIR |
Manufacturer: |
Euroboor |
Color: |
Grey and Black |
Length: |
345mm |
Height: |
730mm |
Width: |
245mm |
Max. Pressure: |
6.3 Bar |
Cutting Diameter: |
12-55mm |
Countersink Diameter: |
12-55mm |
Twist Drill Diameter: |
1-23mm |
Connection Size: |
19.05mm |
Stroke Width: |
167mm |
Maximum Height: |
730mm |
Minimum Height: |
630mm |
Rotation Angle: |
Clockwise |
Magnetic Force: |
900 Kg |
Power Source Type: |
Electric |
RPM (no load): |
380 RPM |
Application: |
Countersinking, Pipe/Tube Mounted Drilling |
Brand Origin (not manufacture): |
Netherlands |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
