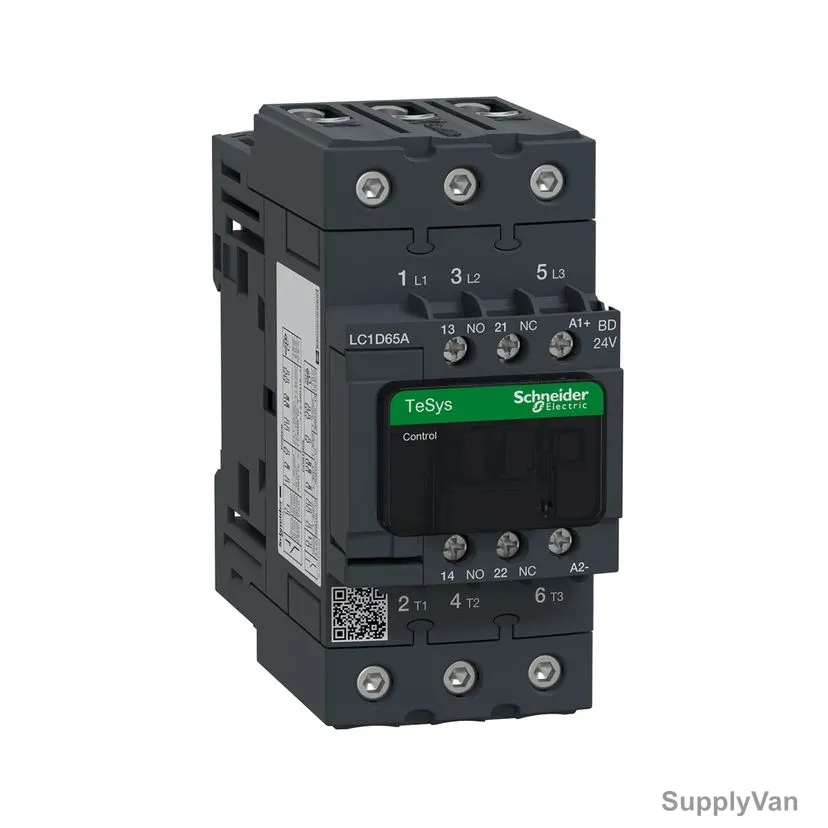

Schneider Electric Contactor, LC1D65ABD, TeSys Deca, 3P, 24VDC Coil, 65A
(No reviews yet)
Write a Review
- Brand:
- Schneider Electric
- SKU:
- 517752571474
- Minimum Purchase:
- 1 unit
- Item Name:
- Contactor
- Model:
- LC1D65ABD
- Product Series:
- TeSys Deca
- Manufacturer:
- Schneider Electric
- Color:
- Black
- Height (MilliMeter):
- 122mm
- Width (MilliMeter):
- 55mm
- Depth:
- 120mm
- Breaking Capacity:
- 1000A at 440V
- Current:
- 65A
- Number of Poles:
- 3P
- Number of Contacts:
- 3 NO
- Ingress Protection (IP Rating):
- IP20
- Impedance:
- 1.5 mOhm
- Application:
- Resistive load, Motor control
- Brand Origin (not manufacture):
- France
- Warranty (Subject to Conditions):
- 18 Months
- Delivery Time:
- 16 Weeks
- Unit:
- Piece
Description
TeSys D contactor, 3 poles (3NO), for motor control applications up to 65A/690V AC-3/3e (30kW@400V). It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60 Deg.C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing.
View AllClose
- Utilisation Category: AC-4, AC-1, AC-3, AC-3e
- Rated Operational Voltage: Power circuit: <= 690 V AC 25...400 Hz, Power circuit: <= 300 V DC
- Rated Operational Current: 65 A (at <60 Deg.C) at <= 440 V AC AC-3 for power circuit
- Control Circuit Voltage: 24VDC
- Contact Compatibility: M4
- Overvoltage Category: III
- Rated Impulse Withstand Voltage: 6 kV
- Mechanical Durability: 10 Mcycles
- Inrush Power: 19W
- Hold-in Power Consumption: 7.4W
- Maximum Operating Rate: 3600 Cyc/h
- Insulation Resistance: 10 mOhm
- Mounting Support: Rail and Plate
Item Name: |
Contactor |
Model: |
LC1D65ABD |
Product Series: |
TeSys Deca |
Manufacturer: |
Schneider Electric |
Color: |
Black |
Height (MilliMeter): |
122mm |
Width (MilliMeter): |
55mm |
Depth: |
120mm |
Breaking Capacity: |
1000A at 440V |
Current: |
65A |
Number of Poles: |
3P |
Number of Contacts: |
3 NO |
Ingress Protection (IP Rating): |
IP20 |
Impedance: |
1.5 mOhm |
Application: |
Resistive load, Motor control |
Brand Origin (not manufacture): |
France |
Warranty (Subject to Conditions): |
18 Months |
Delivery Time: |
16 Weeks |
Unit: |
Piece |
