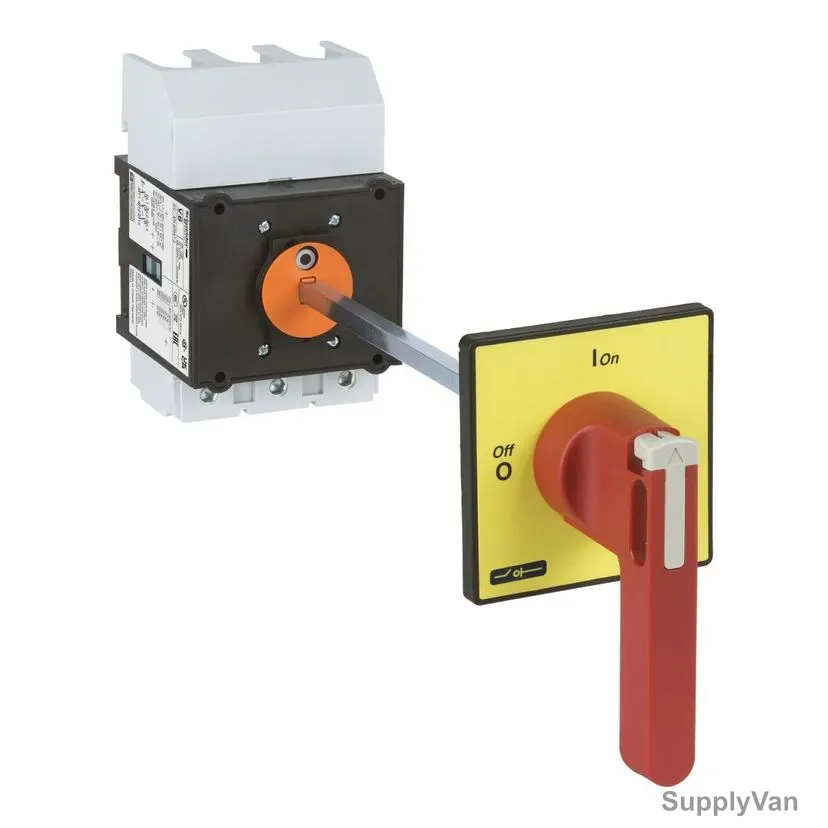

Schneider Electric Emergency Stop Switch Disconnector, VCCF5, TeSys Vario, 3 Pole, 690VAC, 125A
(No reviews yet)
Write a Review
- Brand:
- Schneider Electric
- SKU:
- 159437536389
- Minimum Purchase:
- 1 unit
- Item Name:
- Emergency Stop Switch Disconnector
- Model:
- VCCF5
- Manufacturer:
- Schneider Electric
- Amps (A):
- 125A
- Voltage:
- 690VAC
- Ingress Protection (IP Rating):
- IP20
- Width:
- 90mm
- Height:
- 125mm
- Frequency:
- 50/60 Hz
- Number of Poles:
- 3
- Brand Origin (not manufacture):
- France
- Warranty (Subject to Conditions):
- 18 Months
- Delivery Time:
- 2-7 Days
- Packing Quantity:
- 1
- Unit:
- Piece
Description
The VCCF5 is a high-performance switch-disconnect/emergency stop device from Schneider Electric’s TeSys Vario line. It combines the functionality of a disconnect switch with emergency stop capability, enabling safe isolation of motor or power circuits in industrial installations. It is a 3-pole (3P) switch disconnector, non-fusible in many uses, rated up to 125A conventional thermal current and for operation up to 690 VAC. It is built to meet international industrial standards, offering robust protection, durability, and safety features.
View AllClose
- Multi usage for main and emergency stop switch disconnecting
- Convenient to use with 3 options of padlockable operating handle
- Ensure high protection degree under harsh environment
- Multi standards certified
- Environmental compliant
- Contact type and composition: 3 NO
- Base size: 90 x 90mm
- Fire resistance: 960 Deg.C conforming to IEC 60695-2-1
- Mechanical durability/Electrical durability: 30000 cycles
Item Name: |
Emergency Stop Switch Disconnector |
Model: |
VCCF5 |
Manufacturer: |
Schneider Electric |
Amps (A): |
125A |
Voltage: |
690VAC |
Ingress Protection (IP Rating): |
IP20 |
Width: |
90mm |
Height: |
125mm |
Frequency: |
50/60 Hz |
Number of Poles: |
3 |
Brand Origin (not manufacture): |
France |
Warranty (Subject to Conditions): |
18 Months |
Delivery Time: |
2-7 Days |
Packing Quantity: |
1 |
Unit: |
Piece |
